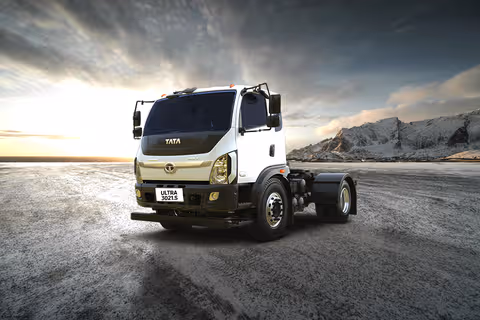

Tata Ultra 3021.S 3320/CAB
Ex-Showroom Price
₹27.35L - ₹28.18L
About
Tata Ultra 3021.S Diesel Engine & Transmission:-Tata Ultra 3021.S 3320/CAB is powered by 5000 cc engine which is available with a Manual transmission. Tata Ultra 3021.S 3320/CAB Fuel Tank Capacity:-It is available in a Diesel version with a fuel tank capacity of 557 litres, 6 Forward + 1 Reverse gear box & compliant with BS-VI emission norms. Tata Ultra 3021.S 3320/CAB Cabin Type -Tata Ultra 3021.S 3320/CAB is available in Box body option with Chassis with Cabin 3320/CAB Wheelbase & GVW -The WheelBase & GVW of 3320/CAB are 3320 mm & 30000 kg respectively. Tata Ultra 3021.S 3320/CAB Features - 3320/CAB is a 14 wheeler Box body. It also offers different features like Power Steering, D+2, Air Brake & more.
Specifications
Tata Ultra 3021.S 3320/CAB Key Specifications
Number of Tyres14
GVW30000 kg
Payload14250 Kgs
Mileage
- 4 kmpl
Fuel Tank Capacity557 Ltr
Fuel TypeDiesel
Max Torque850 Nm
Max Speed80 Km/h
Power
- 205 hp
Gear Box6 Forward + 1 Reverse
Engine5000 cc
Chassis TypeChassis with Cabin
Details
Tata Ultra 3021.S 3320/CAB Features & Specifications
Performance
17 items
Performance
17 items
Max Power 205 hp
Engine Displacement (cc) 5000 cc
Fuel Tank (Litres) 557 Ltr
Engine TATA 5.0L Turbotronn
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 850 Nm
Mileage City 3-4
Mileage Highway 4-5
Mileage 4 kmpl
Gradeability (%) 19 %
Max Speed (km/h) 80
Engine Cylinders 4
Turning Radius (mm) 16600
Battery Capacity 100 Ah
Carrier Type Goods Carrier
Product Type L5N (High Speed Goods Carrier)
Dimension
5 items
Dimension
5 items
Overall Length (mm) 6706
Overall Width (mm) 2440
Ground Clearance (mm) 230
Wheelbase (mm) 3320
Axle Configuration 4x2
Transmission & Loading Capacity
7 items
Transmission & Loading Capacity
7 items
Transmission Manual
Payload (Kgs) 14250 Kgs
GVW / GCW (Kgs) 30000 kg
Kerb Weight (Kgs) 15750
Gear Box 6 Forward + 1 Reverse
Clutch 380 mm Dia Push type Single Plate Dry Friction Organic Lining
Power SteeringYes
Features
14 items
Features
14 items
Steering Power Steering
A/CYes
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringYes
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver SeatYes
Seating Capacity D+2
Tubeless TyresYes
Seat BeltsYes
Hill HoldNo
Brakes & Suspension
7 items
Brakes & Suspension
7 items
Brakes Air Brake
Front Axle TATA heavy duty 7T reverse elliot type
Front Suspension Parabolic leaf Semi elliptical multi leaf spring
Rear Axle TATA Single reduction RA109RR
Rear Suspension Parabolic leaf Semi elliptical multi leaf spring
ABSNo
Parking BrakesYes
Body Option & Cabin Type
4 items
Body Option & Cabin Type
4 items
Chassis Type Day and Sleeper Cabin
Body Option Box body
Cabin Type Chassis with Cabin
Tiltable CabinYes
Tyres
3 items
Tyres
3 items
Number of Tyre 14
Rear Tyre 275/80R22.5
Front Tyre 275/80R22.5
Others
2 items
Others
2 items
ChassisYes
Fog LightsNo
Applications
Tata Ultra 3021.S 3320/CAB Key Use Cases
Use Case 1
Construction material transport
Use Case 2
logistics
Use Case 3
Intercity transport of goods
Alternatives
Tata Ultra 3021.S 3320/CAB Alternatives
Compare
Compare Tata Ultra 3021.S 3320/CAB With Similar Trucks
Expert Review
Tata Ultra 3021.S 3320/CAB Expert Review
Looking for a powerful and reliable truck that can handle the toughest routes and heaviest loads in India? The Tata Ultra 3021.s 3320 Cab is engineered to be your ultimate logistics partner. This heavy-duty commercial vehicle brings a blend of advanced technology, robust performance, and unmatched efficiency to the Indian transportation sector.
Tata Ultra 3021.s 3320 Cab Price in India
The Tata Ultra 3021.s 3320 Cab is a premium offering designed for serious transporters. You can expect the Tata Ultra 3021.s 3320 Cab price in India to range approximately from INR 30 Lakhs to 35 Lakhs (ex-showroom). This competitive pricing reflects its advanced features and superior build quality, offering excellent value for money.
Tata Ultra 3021.s 3320 Cab Mileage & Performance
Under the hood, the Tata Ultra 3021.s 3320 Cab is powered by a robust 5.0L common rail engine, delivering an impressive 209 HP (154 kW) of power and a formidable 850 Nm of torque. This ensures effortless hauling even on steep inclines and over long distances. Despite its power, the Tata Ultra 3021.s 3320 Cab mileage is remarkably efficient, often delivering 3.5 to 4.5 km/l depending on load, terrain, and driving conditions, making it a cost-effective choice for long-haul operations.
Its advanced driveline and optimized gear ratios contribute to superior fuel efficiency, directly impacting your bottom line. The truck is built for sustained high performance, ensuring timely deliveries and maximizing uptime for your business.
Tata Ultra 3021.s 3320 Cab Dimensions & Capacity
When it comes to hauling capabilities, the Tata Ultra 3021.s 3320 Cab truly stands out. It boasts a Gross Vehicle Weight (GVW) of 30,000 kg (30 tonnes), making it ideal for heavy-duty applications. The typical payload capacity ranges from approximately 22,000 kg to 24,000 kg, depending on the body type and specific configuration.
The chassis cab offers flexibility for various body options, commonly accommodating platform lengths of up to 24-28 feet. These impressive Tata Ultra 3021.s 3320 Cab dimensions ensure ample cargo space, allowing you to transport a large volume of goods efficiently.
Versatile Use Cases for Tata Ultra 3021.s 3320 Cab
The Tata Ultra 3021.s 3320 Cab is a highly versatile truck, perfectly suited for a wide array of industrial and commercial applications. It excels in long-haul logistics, transporting heavy construction materials like cement, steel, and aggregates, and is also a strong performer for bulk goods movement across states. Its robust build makes it an excellent choice for e-commerce logistics, container movement, and even carrying agricultural produce.
Reviews & Reliability: Trust the Tata Ultra 3021.s 3320 Cab
Buyers and users consistently praise the Tata Ultra 3021.s 3320 Cab for its exceptional reliability, low maintenance, and strong after-sales service support. Tata Motors' extensive service network across India ensures peace of mind, with readily available parts and skilled technicians. Owners highlight its driver-friendly cabin and overall durability, making it a trusted workhorse on Indian roads.
Tata Ultra 3021.s 3320 Cab Variants & Competitors
While the Tata Ultra 3021.s 3320 Cab is a specific configuration, the Ultra series offers various GVW and wheelbase options to meet diverse business needs. In the 30-tonne segment, it competes strongly with established players like the Ashok Leyland Ecomet 1920 or 2520 series and BharatBenz 2823C or 3528C. However, the Tata Ultra stands out with its superior cabin comfort, advanced features, and proven fuel efficiency, often being considered a top contender for the best truck in India for its segment.
Why Choose the Tata Ultra 3021.s 3320 Cab?
The Tata Ultra 3021.s 3320 Cab is more than just a truck; it's a strategic investment for your business. With its powerful engine, impressive Tata Ultra 3021.s 3320 Cab mileage, generous payload capacity, and reliable performance, it promises lower operating costs and higher profits. For transporters seeking a modern, efficient, and robust solution for heavy-duty applications, this truck offers unmatched value and reliability, truly making it a smart choice for the Indian market.
Pros & Cons
Tata Ultra 3021.S 3320/CAB Pros & Cons
What We Like
10- Robust and durable construction suited for diverse road conditions
- Cost effective purchase price and lower operational expenses
- Widespread service and spare parts availability across India
- Designed for good fuel efficiency in its segment
- High payload carrying capacity optimized for Indian logistics needs
- Reliable engine performance for demanding transport operations
- Improved driver cabin comfort and ergonomics compared to older models
- Strong resale value in the domestic market
- Versatile chassis design allowing various body applications
- Built to comply with Indian regulatory standards
What We Don't Like
8- Limited cabin refinement and premium features compared to international counterparts
- Advanced safety technologies may be optional or not available on all variants
- Overall NVH noise vibration harshness levels could be higher than premium trucks
- May not offer the latest global automotive technology innovations
- While improved long haul driver comfort might still be basic for some
- Perceived brand image might not be as premium as some competitors
- Certain interior materials might not meet global top tier quality standards
- Specific engine power outputs might be less than some higher end global options
FAQ
FAQs about Tata Ultra 3021.S 3320/CAB
Dimensions
Dimensions
What is the overall length of the Tata Ultra 3021.s 3320 Cab?
+−
The overall length is around 5960 mm, making it suitable for maneuvering in urban and semi-urban conditions for various cargo needs.
What is the wheelbase of the Tata Ultra 3021.s 3320 Cab?
+−
It features a 3320 mm wheelbase, providing good stability and enabling a decent turning radius for navigating tight spaces.
What loading area or deck length does the Tata Ultra 3021.s offer?
+−
The chassis allows for varying body lengths, typically around 19-20 feet, offering ample space for diverse cargo requirements.
What is the Gross Vehicle Weight (GVW) of the Tata Ultra 3021.s 3320 Cab?
+−
Its GVW is 21,500 kg, positioning it as a heavy-duty truck capable of handling substantial payloads efficiently across different terrains.
What are the key dimensions for the Tata Ultra 3021.s 3320 Cab's cabin?
+−
The spacious Ultra Cab design ensures comfortable seating and good visibility, optimized for long-haul driver comfort and productivity.
