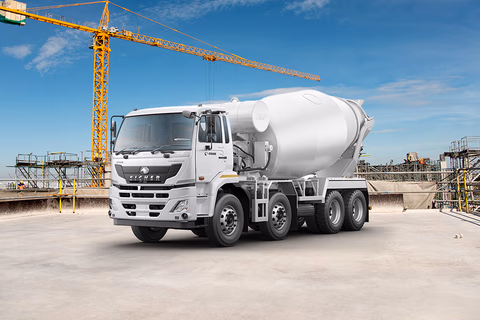

Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum
Ex-Showroom Price
₹50.18L - ₹57.18L
About
Eicher Pro 6035TM Diesel Engine & Transmission:-Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum is powered by 7698 cc engine which is available with a Manual transmission. Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Fuel Tank Capacity:-It is available in a Diesel version with a fuel tank capacity of 220 litres, ET140 S9, 8F+1C+1R gear box & compliant with BS-VI emission norms. Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Cabin Type -Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum is available in Transit Mixer option with Day Cabin 5285/10 Cum/Transit Mixer Drum Wheelbase & GVW -The WheelBase & GVW of 5285/10 Cum/Transit Mixer Drum are 5285 mm & 35000 kg respectively. Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Features - 5285/10 Cum/Transit Mixer Drum is a 12 wheeler Transit Mixer. It also offers different features like Power Steering, D+1, S-Cam dual line & more.
Specifications
Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Key Specifications
Number of Tyres12
GVW35000 kg
Payload16000 Kgs
Mileage
- 2.5-3.5 kmpl
Fuel Tank Capacity220 Ltr
Fuel TypeDiesel
Max Torque1000 Nm
Max Speed80 Km/h
Power
- 194 kw
Gear BoxET120S9, (9F+1R)
Engine7698 cc
Chassis TypeChassis with Cabin
Details
Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Features & Specifications
Performance
16 items
Performance
16 items
Max Power 194 kW
Engine Displacement (cc) 7698 cc
Fuel Tank (Litres) 220 Ltr
Engine VEDX8, OBDII
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 1000 Nm
Mileage Highway 3-4.5
Mileage 2.5-3.5 kmpl
Gradeability (%) 39 %
Max Speed (km/h) 80
Engine Cylinders 6
Turning Radius (mm) 18600
Battery Capacity 120 Ah
Carrier Type Goods Carrier
Product Type L5N (High Speed Goods Carrier)
Dimension
7 items
Dimension
7 items
Overall Length (mm) 8815
Overall Width (mm) 2570
Overall Height (mm) 2960
Ground Clearance (mm) 252
Wheelbase (mm) 5285
Axle Configuration 8x4
Size (Cu. M) 10 Cum
Transmission & Loading Capacity
7 items
Transmission & Loading Capacity
7 items
Transmission Manual
Payload (Kgs) 16000 Kgs
GVW / GCW (Kgs) 35000 kg
Kerb Weight (Kgs) 10000
Gear Box ET120S9, (9F+1R)
Clutch 430 mm, pull type, Single dry plate
Power SteeringYes
Features
14 items
Features
14 items
Steering Power Steering
A/C HVAC (Optional)
Cruise ControlYes
Navigation SystemNo
TelematicsYes
Tiltable Steering Tilt & Telescopic
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver Seat 6 way adjustable
Seating Capacity D+1
Tubeless Tyres Optional
Seat BeltsYes
Hill HoldNo
Brakes & Suspension
7 items
Brakes & Suspension
7 items
Brakes S-Cam dual line
Front Axle Forged reverse elliot type with anti-roll bar
Front Suspension Parabolic suspension
Rear Axle Single reduction tandem axle with interaxle lock
Rear Suspension Bogie Suspension
ABSYes
Parking Brakes Pneumatically operated hand control valve
Body Option & Cabin Type
4 items
Body Option & Cabin Type
4 items
Chassis Type Chassis with Cabin
Body Option Transit Mixer
Cabin Type Day Cabin
Tiltable Cabin Hydraulically tiltable
Tyres
3 items
Tyres
3 items
Number of Tyre 12
Rear Tyre 11x20 Nylon
Front Tyre 11x20 Nylon
Others
3 items
Others
3 items
ChassisYes
Battery(Volts) 24V
Fog Lights Provision
Applications
Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Key Use Cases
Use Case 1
Construction
Alternatives
Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Alternatives
Compare
Compare Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum With Similar Trucks
Expert Review
Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Expert Review
Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum: The Powerhouse for Indian Construction
Looking for a powerful and reliable partner for your concrete delivery needs? The Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum is engineered to deliver unmatched performance on demanding construction sites across India. This heavy-duty transit mixer is designed for efficiency, ensuring your projects stay on schedule and within budget.
Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum Price in India
The Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum price in India typically ranges from an estimated INR 35 Lakhs to INR 45 Lakhs. This price can vary based on specific configurations, features, and regional taxes. It represents a significant investment, but one that promises excellent long-term value and operational efficiency for your business.
Mileage & Performance
While specific mileage figures for transit mixers vary greatly with load and terrain, the Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum mileage is optimized for heavy-duty operations. It features a robust VEDX8 engine, delivering impressive power, often around 250 HP to 280 HP, ensuring superior torque for challenging gradients and heavy concrete loads. This powerful engine, coupled with Eicher's advanced technology, ensures efficient fuel consumption, reducing your running costs.
Dimensions & Capacity
Understanding the Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum dimensions is key to its utility. This beast boasts a Gross Vehicle Weight (GVW) of approximately 35,000 kg, making it a true heavy-hauler. Its primary capacity is the 10 cubic meter drum, designed to carry and perfectly mix a substantial volume of concrete, ensuring fresh and consistent material delivery to your site.
Versatile Use Cases
The Eicher Pro 6035tm is the perfect solution for a wide range of applications. It excels in large-scale construction projects, infrastructure development like highways and bridges, and supplying ready-mix concrete plants. Its reliability ensures timely delivery of concrete, which is crucial for maintaining project timelines and quality, making it a preferred choice for builders.
Reviews & Reliability
Eicher trucks are well-regarded for their robust build and dependable performance, and the Eicher Pro 6035tm is no exception. Users often praise its powerful engine, ease of maintenance, and the overall reliability it brings to their operations. Eicher's extensive service network and readily available spare parts across India further enhance customer trust and support, solidifying Eicher's reputation as a reliable commercial vehicle brand in India.
Variants & Competitors
While the Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum is a specific model, Eicher offers a diverse range of commercial vehicles and transit mixers with varying capacities to meet different project demands. In the competitive Indian market, it stands strong against formidable rivals like Tata Motors, Ashok Leyland, and BharatBenz in the transit mixer segment, often offering a compelling balance of technology and value.
Why Choose the Eicher Pro 6035tm?
For businesses seeking a high-performance, fuel-efficient, and reliable transit mixer, the Eicher Pro 6035tm 5285 10 Cum Transit Mixer Drum is an outstanding choice. Its powerful engine, substantial capacity, and Eicher's proven reliability make it a smart investment for any construction or RMC operation in India. Get ready to power your projects with one of the best trucks in India in its category.
Pros & Cons
Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum Pros & Cons
What We Like
10- Strong local presence and extensive service network across India
- Readily available spare parts ensuring minimal downtime for maintenance
- Engineered to withstand diverse and challenging Indian road conditions
- Competitive initial acquisition cost makes it an attractive investment
- Optimized fuel efficiency contributes to lower operational expenditure
- Reliable engine performance suitable for continuous heavy duty operations
- Efficient mixing and quick discharge capabilities for concrete delivery
- Improved driver cabin comfort and ergonomic controls for long shifts
- Potential for integrated telematics to monitor fleet performance and location
- Robust chassis and durable drum construction designed for longevity
What We Don't Like
10- Brand perception might be lower compared to some established global manufacturers
- Complex electronic systems may require specialized diagnostic equipment for repairs
- Fuel consumption can still be a significant factor in overall running costs
- Resale value might be influenced by market conditions and vehicle age
- Requires skilled and experienced drivers to operate the specialized equipment safely and efficiently
- Availability of very specialized components could be limited in extremely remote areas
- Noise levels from the engine and mixing drum can be a concern in residential zones
- Payload capacity might be restrictive for exceptionally large scale construction projects requiring bigger batches
- Some premium comfort and safety features found in higher end global trucks might be absent
- Initial investment, while competitive, is still substantial for smaller businesses
FAQ
FAQs about Eicher Pro 6035TM 5285/10 Cum/Transit Mixer Drum
Dimensions
Dimensions
What is the overall length of the Eicher Pro 6035tm 5285?
+−
The Eicher Pro 6035tm 5285 has an approximate overall length of 8800 mm. This dimension provides a stable base for the mixer drum and aids maneuverability.
What is the wheelbase of this Eicher transit mixer?
+−
It features a 5285 mm wheelbase. This specific wheelbase ensures excellent stability and optimal weight distribution, crucial for carrying heavy concrete loads effectively.
What are the dimensions of the 10 Cum transit mixer drum?
+−
The 10 cubic meter drum is designed for optimal concrete mixing and precise discharge. Its dimensions are integrated for efficient, robust operation on the chassis.
What is the ground clearance of the Eicher Pro 6035tm 5285?
+−
The ground clearance is engineered to handle varied Indian road conditions and construction site terrains efficiently, ensuring good accessibility without scraping.
What is the overall width of the Eicher Pro 6035tm 5285?
+−
The Eicher Pro 6035tm 5285 has an approximate overall width of 2500 mm, offering stability while maintaining a practical footprint on busy sites.
