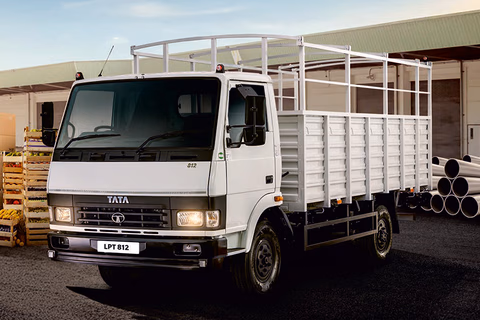

Tata LPT 812 3920/14.2 Ft/CBC truck

Tata LPT 812 3920/14.2 Ft/CBC

Ex-Showroom Price

₹18.30L

About

Tata LPT 812 3920/14.2 Ft/CBC is a medium-duty commercial truck designed for goods transportation, distribution and logistics operations. It is powered by a 3.3-litre, four-cylinder 4SP CR diesel engine that produces approximately 123 HP of maximum power and 360 Nm of peak torque, paired with a 5-speed manual gearbox. The truck has a gross vehicle weight (GVW) of 8,500 kg, a wheelbase of 3,920 mm and a 90-litre diesel fuel tank. Its 14.2-foot load-body configuration offers approximately 4,347 mm of loading length, while the CBC (Cabin and Chassis) design allows buyers to customise the body according to their business requirements. Additional specifications include 216 mm ground clearance, 26.4% gradeability and 245/90 R16 tyres. The truck features power steering, tilt and telescopic steering adjustment, a forward-control day cabin, parabolic front suspension with an anti-roll bar, rear semi-elliptical leaf springs with auxiliary springs, and a full S-cam air braking system. The Tata LPT 812 is suitable for urban and regional cargo delivery, FMCG distribution, and customised commercial transport applications.

Specifications

Tata LPT 812 3920/14.2 Ft/CBC Key Specifications

Top 12
Number of Tyres4
GVW8500 kg
Payload5000 kg
Mileage
  • 5-6 kmpl
Fuel Tank Capacity90 Ltr
Fuel TypeDiesel
Max Torque360 Nm
Max Speed80 Km/h
Power
  • 123 hp
Gear BoxG400 (5F+1R) Cable shift mechanism
Engine3300
Chassis TypeChassis with Cabin

Details

Tata LPT 812 3920/14.2 Ft/CBC Features & Specifications

8 categories

Performance

13 items

Max Power 123 hp
Engine Displacement (cc) 3300 cc
Fuel Tank (Litres) 90 Ltr
Engine 4SP CR 125 PS BS6
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 360 Nm
Gradeability (%) 26.4 %
Engine Cylinders 4
Turning Radius (mm) 12900
Battery Capacity 100 Ah
Product Type L5N (High Speed Goods Carrier)
Carrier Type Goods Carrier

Dimension

5 items

Ground Clearance (mm) 216
Wheelbase (mm) 3920
Loading Length {mm} 4347
Loading Width {mm} 1962
Loading Height {mm} 1825

Transmission & Loading Capacity

5 items

Transmission Manual
GVW / GCW (Kgs) 8500 kg
Gear Box G400 (5F+1R) Cable shift mechanism
Clutch 310 mm, Single plate dry friction type Booster assisted
Power SteeringYes

Features

7 items

Steering Power Steering
A/C Optional
Tiltable Steering Tilt & Telescopic
Seat Type Standard
Driver Information DisplayYes
Seating Capacity D+2
Seat BeltsYes

Brakes & Suspension

6 items

Brakes Full S-Cam Air Brake with Automatic Wear Adjuster
Front Axle Heavy Duty Forged I Beam, Reverse Elliot Type
Front Suspension Parabolic Springs at front with Anti Roll Bar
Rear Axle Banjo Type, RAR 4.57
Rear Suspension Semi elliptical at Rear with Parabolic Aux springs
Parking BrakesYes

Body Option & Cabin Type

3 items

Chassis Type Chassis with Cabin
Body Option Customizable body
Cabin Type Fully Forward Cabin, Day Cabin

Tyres

3 items

Number of Tyre 4
Rear Tyre 245/90R16
Front Tyre 245/90R16

Others

2 items

ChassisYes
Battery(Volts) 12 V

Applications

Tata LPT 812 3920/14.2 Ft/CBC Key Use Cases

3 use cases

Use Case 1

Construction material transport

Use Case 2

Logistics

Use Case 3

Intercity transport of goods

Alternatives

Tata LPT 812 3920/14.2 Ft/CBC Alternatives

Compare

Compare Tata LPT 812 3920/14.2 Ft/CBC With Similar Trucks

Tata LPT 812 3920/14.2 Ft/CBC

Tata LPT 812 3920/14.2 Ft/CBC

Eicher Pro 2059XP

Eicher Pro 2059XP

Eicher Pro 2059XP CNG

Eicher Pro 2059XP CNG

Tata 710 GOLD LPT

Tata 710 GOLD LPT

Price₹18.30 L₹16.09 L - ₹18.12 L₹17.29 L - ₹18.33 L₹15.12 L - ₹18.28 L
Body TypeTrucksTrucksTrucksTrucks
Engine33002960 cc3298 cc2956
Power123 hp120 hp95 hp73.6 kw
Max Torque360 Nm350 Nm245 Nm300 Nm
Mileage5-6 kmpl10 kmpl10 kmpl9 kmpl
GVW8500 kg7490 kg7490 kg7490 kg
Payload5000 kg4015 Kgs3490 KgsNA
Tyres4446
FuelDieselDieselCNGDiesel
Gear BoxG400 (5F+1R) Cable shift mechanism5-Speed5 Speed with hybrid gear shift leverG440 (5F+1R) Cable Shift Mechanism
ChassisChassis with CabinChassis with CabinChassis with CabinChassis with Cabin
View Full Comparison & Add More Trucks

Expert Review

Tata LPT 812 3920/14.2 Ft/CBC Expert Review

Tata LPT 812 3920/14.2 Ft/CBC: Price, Mileage, Features and Specifications

The Tata LPT 812 3920/14.2 Ft/CBC is a medium-duty commercial truck designed for businesses that require reliable performance, practical load-carrying capability and flexible body-building options. Manufactured by Tata Motors, this truck is suitable for logistics companies, distributors, transport operators and businesses involved in regional goods transportation.

The CBC configuration stands for Cab and Chassis, meaning the vehicle comes with a cabin and chassis without a factory-fitted load body. This allows buyers to customise the body according to their specific cargo and business requirements.

Tata LPT 812 3920/14.2 Ft/CBC Price in India

The price of the Tata LPT 812 3920/14.2 Ft/CBC depends on the dealer, location, body-building requirements and applicable taxes. The ex-showroom price has been listed at approximately ₹18.30 lakh by some commercial vehicle listings, but buyers should confirm the latest price with an authorised Tata Motors dealership.

The final on-road cost may include registration, insurance, taxes and any additional body fabrication expenses.

Engine and Performance

The Tata LPT 812 is powered by a 3.3-litre 4SP CR diesel engine that produces approximately 123 hp and 360 Nm of peak torque. The engine is paired with a G400 five-speed manual gearbox with one reverse gear.

This powertrain is designed to support commercial transportation requirements, including regular goods deliveries and regional freight operations. Its manual transmission provides control over gear selection, while the engine's torque output helps with carrying loads across different road conditions.

The truck also offers a reported gradeability of 26.4%, helping it handle inclines when operated within its permitted load limits.

Mileage and Fuel Efficiency

The Tata LPT 812 3920/14.2 Ft/CBC is designed for commercial applications where operating costs and fuel efficiency are important considerations. Actual mileage depends on payload, traffic, road conditions, driving style and vehicle maintenance.

Some listings indicate an approximate mileage of 7 km/l, but real-world fuel consumption may differ significantly depending on operating conditions. Its 90-litre diesel tank helps reduce the frequency of refuelling during longer delivery routes.

Load Capacity and Cargo Body

The Tata LPT 812 has a gross vehicle weight (GVW) of 8,500 kg and a reported rated payload capacity of around 5 tonnes, subject to the final body configuration and applicable vehicle limits.

The 3920/14.2 Ft/CBC variant features a 3,920 mm wheelbase and is intended for buyers who want to customise the load body. The approximate loading length is 4,347 mm, making it suitable for applications such as a cargo box, parcel body, refrigerated body or other compatible commercial body designs.

Its flexibility makes it useful for businesses transporting packaged goods, consumer products, agricultural produce and industrial materials.

Exterior Design and Cabin

The Tata LPT 812 features a forward-control day cabin designed for commercial use. Its practical layout supports daily transportation work, while the chassis provides a foundation for different body-building requirements.

The truck includes power steering and tilt-and-telescopic steering for improved driving convenience. Air conditioning may be available depending on the selected configuration. The cabin is designed to support drivers during regular delivery and regional transport operations.

Braking and Suspension

The Tata LPT 812 features a full pneumatic S-cam air braking system with automatic wear adjusters. This braking arrangement is designed for dependable stopping performance in commercial operations.

The front suspension uses parabolic springs with an anti-roll bar, while the rear suspension uses semi-elliptical leaf springs with parabolic auxiliary springs. These components are intended to support load-carrying capability and vehicle stability during transportation.

Key Specifications

  • Model: Tata LPT 812 3920/14.2 Ft/CBC

  • Manufacturer: Tata Motors

  • Vehicle Type: Medium-duty commercial truck

  • Fuel Type: Diesel

  • Engine: 4SP CR 125 PS BS6

  • Engine Displacement: Approximately 3,300 cc

  • Maximum Power: Approximately 123 hp

  • Maximum Torque: 360 Nm

  • Transmission: G400 five-speed manual

  • Wheelbase: 3,920 mm

  • Gross Vehicle Weight: 8,500 kg

  • Rated Payload: Approximately 5 tonnes, subject to configuration

  • Loading Length: Approximately 4,347 mm

  • Fuel Tank Capacity: 90 litres

  • Ground Clearance: 216 mm

  • Gradeability: 26.4%

  • Braking System: Full S-cam air brakes

  • Front Suspension: Parabolic springs with anti-roll bar

  • Rear Suspension: Semi-elliptical springs with parabolic auxiliary springs

  • Body Type: Cab and chassis

  • Tyres: 245/90 R16

  • Seating Capacity: Driver plus two passengers

Use Cases of Tata LPT 812 3920/14.2 Ft/CBC

The Tata LPT 812 3920/14.2 Ft/CBC can be used for several commercial transportation applications, including:

  • Logistics and courier services: Custom cargo bodies can accommodate parcels and packaged shipm

Pros & Cons

Tata LPT 812 3920/14.2 Ft/CBC Pros & Cons

What We Like

5
  • The Tata Lpt 812 3920142 Ftcbc, powered by its reliable 3.3L Turbotronn BS6 diesel engine delivering 125 PS and 390 Nm of torque, offers robust performance and excellent pulling power suitable for diverse medium-duty applications across challenging Indian terrains.
  • Boasting a high payload capacity of approximately 5-5.5 tons on its sturdy chassis and a Gross Vehicle Weight (GVW) of 8.8 tons, this truck is specifically designed to handle heavy loads efficiently, making it a cost-effective choice for bulk goods transport.
  • Its practical diesel mileage, typically ranging between 8-10 km/l depending on driving conditions and load, provides a competitive operational cost per kilometer for operators, while a potential CNG variant (e.g., LPT 812g) offers around 6-7 km/kg for greener, more economical city logistics.
  • Being a Fixed Tilt Cab and Chassis (FTCBC) model with a 3920mm wheelbase, the Tata Lpt 812 3920142 Ftcbc offers immense flexibility for buyers to customize body types, from closed containers to open-load bodies, perfectly suiting specific business needs.
  • Supported by Tata Motors' extensive service and spare parts network across India, owners of the Tata Lpt 812 3920142 Ftcbc benefit from easy access to maintenance, ensuring minimal downtime and higher uptime for their commercial operations.

What We Don't Like

4
  • The cabin of the Tata Lpt 812, while functional, might feel basic in terms of features and ergonomics compared to some newer competitors in the 8-ton segment, potentially impacting driver comfort during long-haul journeys.
  • Maneuverability in highly congested urban environments or narrow lanes can be a bit challenging due to its substantial 3920mm wheelbase and overall length, requiring more skill and space for turns.
  • While built for durability, the ride quality, especially when the truck is unladen or on rough roads, can be on the stiffer side, potentially leading to increased driver fatigue over extended periods.
  • The initial purchase price, typically ranging from ₹14.5 Lakhs to ₹16.5 Lakhs (Ex-showroom), might be a significant investment for smaller operators, although it aligns with market standards for its GVW category.

FAQ

FAQs about Tata LPT 812 3920/14.2 Ft/CBC

Dimensions

Dimensions

What are the dimensions of the Tata LPT 812 3920142 FTCBC?

+
The Tata LPT 812 3920142 FTCBC has an overall length of approximately 6850 mm (for 14ft load body), an overall width of 2200 mm, and an overall height of about 2650 mm (unladen). These dimensions offer a balanced footprint for maneuverability and load carrying.

What is the wheelbase of the Tata LPT 812 3920142 FTCBC?

+
The wheelbase of the Tata LPT 812 3920142 FTCBC is precisely 3920 mm, which is a key factor in its stability and ability to accommodate various load body lengths. This specific dimension is part of its model designation.

What is the load body length of the Tata LPT 812 3920142 FTCBC?

+
For the 3920mm wheelbase, common load body length options for the Tata LPT 812 3920142 FTCBC include 14 feet (approximately 4.3 meters) and 17 feet (approximately 5.2 meters). The '142' in the name often points to a 14-foot body length, which is about 4.3 meters.

What is the GVW (Gross Vehicle Weight) of the Tata LPT 812 3920142 FTCBC?

+
The GVW (Gross Vehicle Weight) of the Tata LPT 812 3920142 FTCBC is 8750 kg, placing it firmly in the 8.75-ton category. This GVW indicates its total permissible weight, including the vehicle, fuel, driver, and cargo.

What is the overall length of the Tata LPT 812 3920142 FTCBC?

+
The overall length of the Tata LPT 812 3920142 FTCBC with a standard 14-foot load body is approximately 6850 mm (6.85 meters). This dimension is important for parking and navigating tight spaces.

What is the cabin type of the Tata LPT 812 3920142 FTCBC?

+
The Tata LPT 812 3920142 FTCBC features a comfortable and functional day cabin, designed for driver ease and efficient operations. This cabin type is standard for its segment, providing good visibility and ergonomics.

What is the ground clearance of the Tata LPT 812 3920142 FTCBC?

+
The ground clearance of the Tata LPT 812 3920142 FTCBC is approximately 210 mm, which is adequate for navigating varied Indian road conditions, including speed breakers and uneven surfaces. This dimension helps prevent undercarriage damage.

Are there different load body options for the Tata LPT 812 3920142 FTCBC?

+
Yes, while typically sold as a chassis with a cabin, the Tata LPT 812 3920142 FTCBC allows for various load body options, including fixed side deck, high side deck, container, or specialized bodies like reefer, based on business requirements. The dimension of 14ft or 17ft are common choices for this wheelbase.
