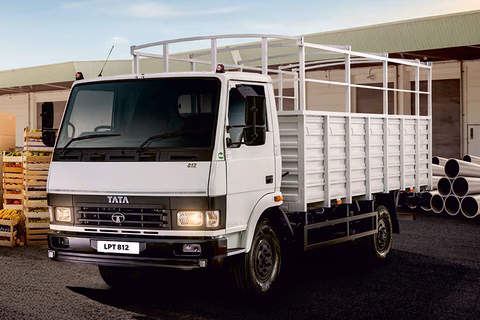

Tata LPT 812 3920/17.1 Ft/HSD truck

Tata LPT 812 3920/17.1 Ft/HSD

Est. Showroom Price

₹19.54L

About

Tata LPT 812 3920/17.1 Ft/HSD is a medium-duty commercial truck designed for transporting goods across urban and regional routes. It is powered by a 3.3-litre, four-cylinder 4SP CR diesel engine that produces 123 HP of maximum power and 360 Nm of peak torque, paired with a G400 5-speed manual gearbox. The truck has a gross vehicle weight (GVW) of 8,500 kg, a wheelbase of 3,920 mm and a 90-litre diesel fuel tank, along with an 18-litre DEF tank. The 17.1-foot high-side deck (HSD) body provides a loading length of approximately 5,218 mm, making it suitable for transporting bulky goods, agricultural produce, FMCG products and construction materials. Additional specifications include 216 mm ground clearance, 26.4% gradeability and 245/90 R16 tyres. The truck features power steering, tilt and telescopic steering adjustment, a forward-control day cabin, parabolic front suspension with an anti-roll bar, and semi-elliptical rear suspension with auxiliary springs. Its full S-cam air braking system supports reliable braking under load. The Tata LPT 812 3920/17.1 Ft/HSD is designed for practical cargo handling, durability and efficient commercial transportation.

Specifications

Tata LPT 812 3920/17.1 Ft/HSD Key Specifications

Top 12
Number of Tyres4
GVW8500 kg
Payload5000 kg
Mileage
  • 5-6 kmpl
Fuel Tank Capacity90 Ltr
Fuel TypeDiesel
Max Torque360 Nm
Max Speed80 Km/h
Power
  • 123 hp
Gear BoxG400 (5F+1R) Cable shift mechanism
Engine3300 cc
Chassis TypeChassis with Cabin

Details

Tata LPT 812 3920/17.1 Ft/HSD Features & Specifications

8 categories

Performance

13 items

Max Power 123 hp
Engine Displacement (cc) 3300 cc
Fuel Tank (Litres) 90 Ltr
Engine 4SP CR 125 PS BS6
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 360 Nm
Gradeability (%) 26.4 %
Engine Cylinders 4
Turning Radius (mm) 12900
Battery Capacity 100 Ah
Carrier Type Goods Carrier
Product Type L5N (High Speed Goods Carrier)

Dimension

5 items

Ground Clearance (mm) 216
Wheelbase (mm) 3920
Loading Length {mm} 5218
Loading Width {mm} 1962
Loading Height {mm} 1811

Transmission & Loading Capacity

5 items

Transmission Manual
GVW / GCW (Kgs) 8500 kg
Gear Box G400 (5F+1R) Cable shift mechanism
Clutch 310 mm, Single plate dry friction type Booster assisted
Power SteeringYes

Features

7 items

Steering Power Steering
A/C Optional
Tiltable Steering Tilt & Telescopic
Seat Type Standard
Driver Information DisplayYes
Seating Capacity D+2
Seat BeltsYes

Brakes & Suspension

6 items

Brakes Full S-Cam Air Brake with Automatic Wear Adjuster
Front Axle Heavy Duty Forged I Beam, Reverse Elliot Type
Front Suspension Parabolic Springs at front with Anti Roll Bar
Rear Axle Banjo Type, RAR 4.57
Rear Suspension Semi elliptical at Rear with Parabolic Aux springs
Parking BrakesYes

Body Option & Cabin Type

3 items

Chassis Type Chassis with Cabin
Body Option Box body
Cabin Type Fully Forward Cabin, Day Cabin

Tyres

3 items

Number of Tyre 4
Rear Tyre 245/90R16
Front Tyre 245/90R16

Others

2 items

ChassisYes
Battery(Volts) 12 V

Applications

Tata LPT 812 3920/17.1 Ft/HSD Key Use Cases

3 use cases

Use Case 1

Intercity transport of goods

Use Case 2

Logistics

Use Case 3

Construction material transport

Alternatives

Tata LPT 812 3920/17.1 Ft/HSD Alternatives

Compare

Compare Tata LPT 812 3920/17.1 Ft/HSD With Similar Trucks

Tata LPT 812 3920/17.1 Ft/HSD

Tata LPT 812 3920/17.1 Ft/HSD

Eicher Pro 2075

Eicher Pro 2075

Mahindra Furio 11

Mahindra Furio 11

Tata 710 SK

Tata 710 SK

Price₹19.54 L₹17.16 L - ₹19.68 L₹19.22 L - ₹19.74 L₹19.56 L
Body TypeTrucksTrucksTrucksTrucks
Engine3300 cc2960 cc3500 cc2956 cc
Power123 hp120 hp103 kW100 hp
Max Torque360 Nm350 Nm525 Nm300 Nm
Mileage5-6 kmpl8.5 kmpl7.5 kmpl7-8 kmp
GVW8500 kg7490 kg11280 kg7490 kg
Payload5000 kg3769/3544 Kgs6441 (7.1) Kgs4000 Kgs
Tyres4666
FuelDieselDieselDieselDiesel
Gear BoxG400 (5F+1R) Cable shift mechanism5 Forward + 1 Reverse6 speed Overdrive Synchro Gearbox5 Forward + 1 Reverse
ChassisChassis with CabinChassis with CabinChassis with CabinChassis with Cabin
View Full Comparison & Add More Trucks

Expert Review

Tata LPT 812 3920/17.1 Ft/HSD Expert Review

Tata LPT 812 3920/17.1 Ft/HSD: Price, Mileage, Features and Specifications

The Tata LPT 812 3920/17.1 Ft/HSD is a medium-duty commercial truck designed for businesses that need reliable performance, good load-carrying capability and a spacious cargo deck. Manufactured by Tata Motors, this truck is suitable for logistics companies, distributors, fleet operators and businesses involved in regional goods transportation.

The 17.1-foot High Side Deck (HSD) configuration provides a longer loading area for carrying different types of cargo. With its diesel engine, sturdy chassis and practical cabin, the Tata LPT 812 is designed to support regular commercial operations.

Tata LPT 812 3920/17.1 Ft/HSD Price in India

The Tata LPT 812 3920/17.1 Ft/HSD price depends on the location, dealer offers, registration charges and other applicable costs. Some market listings indicate an approximate on-road price of ₹18.54 lakh, although the final price should be confirmed with an authorised Tata Motors dealership.

The total purchase cost may vary according to insurance, taxes and any additional body or equipment requirements.

Engine and Performance

The Tata LPT 812 3920/17.1 Ft/HSD is powered by a 3.3-litre 4SP CR diesel engine that produces approximately 123 hp and 360 Nm of peak torque. It is paired with a G400 five-speed manual gearbox with one reverse gear.

The engine is designed to deliver useful pulling power for commercial transportation, including deliveries and regional freight operations. The manual transmission gives drivers control over gear selection, while the engine's torque output supports operation under load.

The truck also offers a reported gradeability of 26.4%, helping it negotiate inclines when operated within its specified load limits.

Mileage and Fuel Efficiency

Fuel efficiency is an important consideration for businesses operating commercial trucks over regular delivery routes. The Tata LPT 812 uses a diesel powertrain designed for goods transportation, with actual mileage depending on payload, traffic, road conditions, driving style and vehicle maintenance.

Market listings report different mileage figures, so buyers should confirm the expected fuel efficiency for their intended application. The 90-litre fuel tank helps reduce refuelling frequency during longer working routes.

Load Capacity and High Side Deck

The Tata LPT 812 has a gross vehicle weight (GVW) of 8,500 kg. Its rated payload varies depending on the body configuration and vehicle specification, so the final payload should be confirmed with the dealer.

The 3920/17.1 Ft/HSD variant features a 3,920 mm wheelbase and a long high-side deck. The listed load-body dimensions are approximately 5,218 mm in length, 1,962 mm in width and 1,811 mm in height.

The high-side deck is suitable for businesses that need a larger cargo area for transporting packaged goods, agricultural produce, market loads and other compatible materials. Its load-body configuration helps operators organise cargo for regular distribution work.

Exterior Design and Cabin Comfort

The Tata LPT 812 features a forward-control day cabin designed for commercial driving. Its practical design and sturdy chassis support day-to-day freight transportation.

The truck offers power steering and tilt-and-telescopic steering to improve driving convenience. Air conditioning availability may depend on the selected configuration. The cabin is designed to provide practical controls and seating for drivers working regular delivery routes.

Braking and Suspension

The Tata LPT 812 uses a full pneumatic S-cam air braking system with automatic wear adjusters. This system is designed to provide dependable braking for commercial operations.

The front suspension uses parabolic springs with an anti-roll bar, while the rear suspension uses semi-elliptical leaf springs with parabolic auxiliary springs. This combination is intended to support load carrying, stability and durability across varied road conditions.

Key Specifications

  • Model: Tata LPT 812 3920/17.1 Ft/HSD

  • Manufacturer: Tata Motors

  • Vehicle Type: Medium-duty commercial truck

  • Fuel Type: Diesel

  • Engine: 4SP CR 125 PS BS6

  • Engine Displacement: Approximately 3,300 cc

  • Maximum Power: Approximately 123 hp

  • Maximum Torque: 360 Nm

  • Transmission: G400 five-speed manual

  • Wheelbase: 3,920 mm

  • Gross Vehicle Weight: 8,500 kg

  • Loading Length: Approximately 5,218 mm

  • Loading Width: Approximately 1,962 mm

  • Loading Height: Approximately 1,811 mm

  • Fuel Tank Capacity: 90 litres

  • Ground Clearance: 216 mm

  • Gradeability: 26.4%

  • Braking System: Full S-cam air brakes

  • Front Suspension: Parabolic spring

Pros & Cons

Tata LPT 812 3920/17.1 Ft/HSD Pros & Cons

What We Like

5
  • The Tata LPT 812 3920171 FTHSD, powered by a robust 3.3L or 3.8L engine, delivers a dependable performance of approximately 125 HP and 400 Nm torque, making it a reliable workhorse for diverse commercial applications across India.
  • Offering a substantial 8.25-ton Gross Vehicle Weight (GVW) and a competitive payload capacity typically ranging between 4.5-5 tons, this truck, with its 3920mm wheelbase, provides excellent load-carrying capability and versatility for various medium-duty logistics.
  • The availability of a factory-fitted CNG variant in the Tata LPT 812 3920171 FTHSD significantly reduces operational fuel costs and contributes to lower emissions, offering a sustainable and economical transport solution for fleet owners.
  • Owners of the Tata LPT 812 3920171 FTHSD benefit immensely from Tata Motors' extensive and unparalleled service network throughout India, ensuring readily available spare parts and prompt technical support that minimizes downtime.
  • Featuring an ergonomically designed cabin with comfortable seating, power steering, and an optimized suspension system, the truck prioritizes driver comfort and reduces fatigue on long hauls, contributing to enhanced productivity and safety.

What We Don't Like

4
  • Compared to some contemporary rivals in the 8-ton segment, the cabin interior and overall driver amenities of the Tata LPT 812 3920171 FTHSD might feel somewhat basic, potentially lacking advanced comfort and convenience features expected in modern trucks.
  • While competitive for its class, the diesel variant's real-world mileage, often hovering around 8-10 km/l depending on load and driving conditions, might not always align with the aggressive fuel efficiency targets of some cost-conscious operators.
  • The initial ex-showroom price of the Tata LPT 812 3920171 FTHSD, typically ranging from ₹15-17 Lakhs, represents a notable upfront investment for new or small-scale fleet owners, despite its potential for long-term operational savings.
  • The 3920mm long wheelbase, while beneficial for carrying longer loads, can slightly impede the vehicle's maneuverability in highly congested urban environments or during complex parking and loading operations in tight spaces.

FAQ

FAQs about Tata LPT 812 3920/17.1 Ft/HSD

Dimensions

Dimensions

What are the overall dimensions of the Tata LPT 812?

+
The Tata LPT 812 3920171 Fthsd, with its 3920mm wheelbase, typically has an overall length of approximately 6500mm, a width of around 2200mm, and an unladen height of about 2300mm (cabin height). These are crucial truck dimensions for planning routes and parking.

What is the wheelbase of the Tata LPT 812 3920171 Fthsd?

+
The specific model Tata LPT 812 3920171 Fthsd features a wheelbase of 3920mm, which is clearly indicated in its model designation. This wheelbase contributes to its stability and loading capacity.

What is the load body length of the Tata LPT 812 with a 3920mm wheelbase?

+
For the Tata LPT 812 with a 3920mm wheelbase, the standard load body length (deck length) is approximately 17-18 feet (around 5180mm to 5480mm). This provides ample space for various cargo types, directly impacting the truck's effective dimensions for carrying goods.

What is the ground clearance of the Tata LPT 812?

+
The Tata LPT 812 generally offers a ground clearance of approximately 210mm to 220mm, which is suitable for navigating varied Indian road conditions. This specific truck dimension helps prevent scraping on uneven surfaces.

What is the maximum width of the Tata LPT 812?

+
The maximum overall width of the Tata LPT 812 is typically around 2200mm (2.2 meters). This specific truck dimension is important for assessing its maneuverability and fitting into narrow lanes or loading docks.

Are there different dimensions available for the Tata LPT 812 chassis?

+
Yes, the Tata LPT 812 series is available with different wheelbases and consequently different load body dimensions to cater to various application requirements. However, the Tata LPT 812 3920171 Fthsd specifically refers to the 3920mm wheelbase variant.

What is the overall height of the Tata LPT 812 cabin?

+
The unladen overall height of the Tata LPT 812 cabin is typically around 2300mm (2.3 meters). This truck dimension should be considered for clearances under bridges or in covered parking areas.
