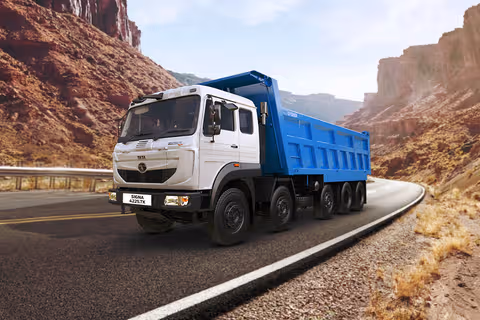

Tata Signa 4225.TK CAB/6700 truck

Tata Signa 4225.TK CAB/6700

Ex-Showroom Price

₹56.62L

About

Tata Signa 4225.TK Diesel Engine & Transmission:-Tata Signa 4225.TK CAB/6700 is powered by 6692 cc engine which is available with a Manual transmission. Tata Signa 4225.TK CAB/6700 Fuel Tank Capacity:-It is available in a Diesel version with a fuel tank capacity of 300 litres, G1150 9 speed Gearbox with crawler & one reverse gear box & compliant with BS VI emission norms. Tata Signa 4225.TK CAB/6700 Cabin Type -Tata Signa 4225.TK CAB/6700 is available in Box body option with Day and Sleeper Cabin CAB/6700 Wheelbase & GVW -The WheelBase & GVW of CAB/6700 are 6700 mm & 42000 kg respectively. Tata Signa 4225.TK CAB/6700 Features - CAB/6700 is a 14 wheeler Box body. It also offers different features like Power Steering, D+1, New iCGT Brakes & more.

Specifications

Tata Signa 4225.TK CAB/6700 Key Specifications

Top 12
Number of Tyres14
GVW42000 kg
Payload32000 Kgs
Mileage
  • 2.25-3.25 kmpl
Fuel Tank Capacity300 Ltr
Fuel TypeDiesel
Max Torque950 Nm
Max Speed80 Km/h
Power
  • 250 hp
Gear BoxG1150 9 speed Gearbox with crawler & one reverse
Engine6692 cc
Chassis TypeChassis with Cabin

Details

Tata Signa 4225.TK CAB/6700 Features & Specifications

8 categories

Performance

12 items

Max Power 250 hp
Engine Displacement (cc) 6692 cc
Fuel Tank (Litres) 300 Ltr
Engine Cummins ISBe 6.7L
Fuel Type Diesel
Emission Norms BS VI
Max Torque 950 Nm
Mileage 2.25-3.25 kmpl
Max Speed (km/h) 80
Engine Cylinders 6
Product Type L5N (High Speed Goods Carrier)
Carrier Type Goods Carrier

Dimension

6 items

Overall Width (mm) 2540
Overall Height (mm) 3067
Ground Clearance (mm) 300
Wheelbase (mm) 6700
Axle Configuration 10x2/10x4 (Optional)
Size (Cu. M) 24m3 Box

Transmission & Loading Capacity

7 items

Transmission Manual
Payload (Kgs) 32000 Kgs
GVW / GCW (Kgs) 42000 kg
Kerb Weight (Kgs) 10000
Gear Box G1150 9 speed Gearbox with crawler & one reverse
Clutch 430 mm dia single plate dry friction organic lining
Power SteeringYes

Features

14 items

Steering Power Steering
A/CYes
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Tiltable Steering Tilt and telescopic
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver Seat 6 way adjustable
Seating Capacity D+1
Tubeless TyresNo
Seat BeltsYes
Hill HoldYes

Brakes & Suspension

7 items

Brakes New iCGT Brakes
Front Axle Forged I Beam Reverse Elliot Type Drop Beam
Front Suspension Parabolic Leaf Spring Semi Elliptical leaf Spring
Rear Axle Single Reduction,Extra Heavy Duty,Hypoid Gears,Fully Floating Axle Shafts
Rear Suspension Semi Elliptical Leaf Spring Bogie Suspension
ABSYes
Parking BrakesNo

Body Option & Cabin Type

4 items

Chassis Type Chassis with Cabin
Body Option Box body
Cabin Type Day and Sleeper Cabin
Tiltable Cabin Hydraulically tiltable

Tyres

3 items

Number of Tyre 14
Rear Tyre 295/90 R20 (in 10x2 configuration), 11R20 (in 10x4 configuration)
Front Tyre 295/90 R20 in 10x2 configuration, 11R20 in 10x4 configuration

Others

3 items

ChassisYes
Battery(Volts) 12 V
Fog LightsNo

Applications

Tata Signa 4225.TK CAB/6700 Key Use Cases

3 use cases

Use Case 1

Construction

Use Case 2

Mining

Use Case 3

Road development

Compare

Compare Tata Signa 4225.TK CAB/6700 With Similar Trucks

Tata Signa 4225.TK CAB/6700

Tata Signa 4225.TK CAB/6700

Ashok Leyland AVTR 3525-8x4

Ashok Leyland AVTR 3525-8x4

Ashok Leyland AVTR 4220-10x2

Ashok Leyland AVTR 4220-10x2

Eicher Pro 8028XM

Eicher Pro 8028XM

Price₹56.62 L₹55.50 L₹55.50 L₹52.80 L - ₹56.80 L
Body TypeTipperTipperTipperTipper
Engine6692 cc5660 cc5660 cc7698 cc
Power250 hp250 hp200 hp257 kW
Max Torque950 Nm900 Nm700 Nm1350 Nm
Mileage2.25-3.25 kmpl2.5-3.5 kmp2.25-3.25 kmpl2.5-3.5 kmpl
GVW42000 kg35000 kg42000 kg28000 kg
Payload32000 Kgs23000 Kgs29000 Kgs17000 Kgs
Tyres14121210
FuelDieselDieselDieselDiesel
Gear BoxG1150 9 speed Gearbox with crawler & one reverse9 Speed synchromesh ??" FGR 12.73:19 Speed synchromesh ??" FGR 12.73:1ET140S9, (8 Forward + 1 Reverse)
ChassisChassis with CabinChassis with CabinChassis with CabinChassis with Cabin
View Full Comparison & Add More Trucks

Expert Review

Tata Signa 4225.TK CAB/6700 Expert Review

Tata Signa 4225.TK is a heavy-duty 14-wheel tipper designed for mining, construction, infrastructure and bulk material transportation. With a gross vehicle weight (GVW) of 42 tonnes, a powerful Cummins diesel engine and a high-capacity tipper body, it is engineered to handle demanding operations across challenging terrains. Its robust chassis, advanced drivetrain and spacious sleeper cabin make it a suitable choice for businesses involved in large-scale material movement.

Price in India

The Tata Signa 4225.TK has an indicative ex-showroom price starting from approximately ₹50.42 lakh. The final price may vary depending on the location, dealership, taxes and selected configuration.

Engine and Performance

Tata Signa 4225.TK is powered by a Cummins ISBe 6.7-litre, six-cylinder BS6 diesel engine with a displacement of 6,692cc. It produces a maximum power of 250 HP at 2,300 rpm and peak torque of 950 Nm. This engine delivers the pulling strength required for transporting heavy construction materials, aggregates and mining loads.

It is paired with a Tata G1150 9-speed manual gearbox featuring a crawler gear and one reverse gear. The 430 mm single-plate dry-friction clutch supports reliable power transmission during demanding tipper operations.

Mileage and Fuel Tank Capacity

Tata Signa 4225.TK offers an indicative mileage of approximately 2.25–3.25 kmpl, depending on load, terrain, driving habits and operating conditions. It comes with a 300-litre HDPE diesel fuel tank, helping support extended working schedules and reducing frequent refuelling requirements.

Dimensions and Load Capacity

The truck has a gross vehicle weight of 42,000 kg and an approximate payload capacity of 32,000 kg. It features a 6,700 mm wheelbase and a 14-wheel configuration. The tipper is equipped with a 24-cubic-metre box body, making it suitable for transporting large quantities of bulk materials. Its heavy-duty chassis is designed to withstand demanding construction and mining operations.

Cabin and Comfort Features

Tata Signa 4225.TK features a spacious sleeper cabin designed to improve driver comfort during long working hours. Depending on the configuration, features include air conditioning, power steering, tilt and telescopic steering, a six-way adjustable driver seat, a driver information display and telematics support. High-speed USB charging ports and enhanced storage space further improve convenience.

Safety and Suspension

The truck features a heavy-duty forged I-beam front axle and a robust rear axle arrangement. Its suspension system includes parabolic or semi-elliptical leaf springs at the front and bogie suspension at the rear, depending on the configuration. The lift axle is equipped with air suspension. The iCGT braking system, engine brake and hill-start assistance help provide improved control during demanding operations.

Applications and Practical Use

Tata Signa 4225.TK is suitable for transporting sand, gravel, coal, stone aggregates, ores, minerals and construction debris. It is particularly useful for mining operations, quarrying, road construction, infrastructure development and large-scale industrial projects where efficient bulk material movement is essential.

Conclusion

Tata Signa 4225.TK combines a 250 HP Cummins engine, 950 Nm torque, a 42-tonne GVW and a 24-cubic-metre tipper body. With its 9-speed gearbox, heavy-duty chassis, advanced braking system and comfortable sleeper cabin, it is a capable option for construction companies, mining contractors and commercial fleet operators.

Pros & Cons

Tata Signa 4225.TK CAB/6700 Pros & Cons

What We Like

9
  • Extensive service and spare parts network across India
  • Robust build quality suitable for diverse Indian road conditions
  • Generally good fuel efficiency for its heavy-duty segment
  • Competitive total cost of ownership
  • Strong resale value in the Indian market
  • High payload capacity ideal for heavy cargo transport
  • Improved driver comfort and ergonomics in the Signa cabin
  • Powerful engine performance suitable for long haul and challenging terrains
  • Easy availability of financing options from various institutions

What We Don't Like

8
  • Higher initial purchase cost compared to some entry-level alternatives
  • Cab refinement might not match international premium truck brands
  • Large dimensions can make maneuvering in congested areas challenging
  • While improved noise vibration and harshness levels could still be better
  • Advanced electronics might require specialized diagnostic tools for repairs
  • Heavy vehicle operation can still lead to driver fatigue on very long hauls
  • Fuel consumption remains significant as a heavy-duty vehicle
  • Maintenance might require trained technicians for BS6 compliant engines

FAQ

FAQs about Tata Signa 4225.TK CAB/6700

Dimensions

Dimensions

What is the overall length of the Tata Signa 4225.tk Cab 6700?

+
The Tata Signa 4225.tk Cab 6700 typically features an impressive overall length, designed to accommodate a long loading span for various cargo types and maximize payload capacity.

What is the wheelbase of the Tata Signa 4225.tk Cab 6700?

+
It comes with a 6700 mm wheelbase, providing excellent stability and load distribution, especially beneficial for long-distance haulage and heavy-duty applications across diverse terrains.

What is the loading area or deck length available on this truck?

+
The truck offers a generous loading deck length, usually around 28-32 feet (8.5-9.7 meters), making it highly suitable for transporting large volumes and oversized cargo efficiently across India.

What are the width and height specifications of the Tata Signa 4225.tk Cab 6700?

+
Its approximate width is around 2.5 meters and height is about 3 meters, ensuring it complies with Indian road regulations while offering ample internal space and robust road presence.

What is the turning radius for the Tata Signa 4225.tk Cab 6700?

+
Despite its large size, the truck is engineered for a manageable turning radius, aiding maneuverability in city limits and on tight construction sites, improving operational efficiency.
