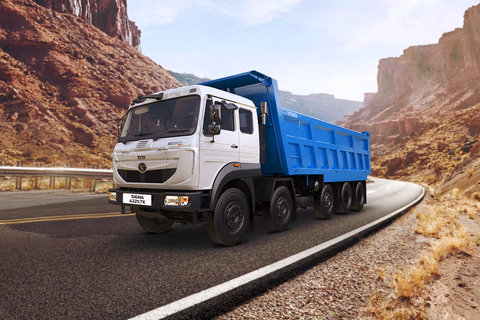

Tata Signa 4225 TK truck

Tata Signa 4225 TK

Ex-Showroom Price

₹56.62L

About

Tata Signa 4225 TK is a heavy-duty tipper truck designed for demanding construction, infrastructure, mining and material transportation operations. Its robust chassis and tipper configuration make it suitable for carrying and unloading materials such as sand, gravel, soil, stones and aggregates. The truck is built to handle challenging working conditions while supporting efficient movement of heavy loads. The truck is powered by a 6.7-litre Cummins ISBe BS6 diesel engine that produces around 250 HP of maximum power at 2,300 rpm and 950 Nm of peak torque. It is paired with a Tata G1150 9-speed manual gearbox, featuring a crawler gear and reverse gear for better control while operating under heavy loads. With a 42,000 kg gross vehicle weight (GVW), the Signa 4225 TK is designed for high-capacity material transportation. It offers a 24-cubic-metre box body and 10x2 or optional 10x4 axle configurations, depending on the application. The Tata Signa 4225 TK features a heavy-duty ladder-type chassis frame, a forged I-beam front axle and a robust rear axle. Its suspension setup includes parabolic leaf springs at the front and semi-elliptical or bogie suspension at the rear, depending on the configuration. The truck also comes with a hydraulically tiltable Signa cabin, a sleeper option, power steering and heavy-duty braking systems. These features make it suitable for transporting construction aggregates, coal, minerals and other bulk materials across demanding work environments.

Specifications

Tata Signa 4225 TK Key Specifications

Top 12
Number of Tyres14
GVW42000 kg
Payload32000 Kgs
Mileage
  • 2.25-3.25 kmpl
Fuel Tank Capacity300 Ltr
Fuel TypeDiesel
Max Torque950 Nm
Max Speed80 Km/h
Power
  • 250 hp
Gear BoxG1150 9 speed Gearbox with crawler & one reverse
Engine6692 cc
Chassis TypeChassis with Cabin

All Variants

Tata Signa 4225 TK Variants

1 variant
VariantPriceMileageFuelAction
Tata Signa 4225.TK CAB/6700₹56.62LEx-showroom Price2.25-3.25 kmplDieselDetails

Series

Explore Tata Series

8 series

Applications

Tata Signa 4225 TK Key Use Cases

2 use cases

Use Case 1

Construction

Use Case 2

Road development

Pros & Cons

Tata Signa 4225 TK Pros & Cons

What We Like

9
  • Powerful engine suitable for heavy duty long haul applications
  • High payload capacity designed for substantial cargo transport
  • Robust chassis and durable construction ensuring longevity
  • Extensive service and spare parts network across India
  • Driver friendly Signa cabin offering improved comfort and features
  • Competitive fuel efficiency for its segment
  • Integration with telematics systems like Fleet Edge for fleet management
  • Reliable performance for diverse transport needs
  • Good value proposition for its capability and market position

What We Don't Like

7
  • Cabin refinement and noise vibration harshness levels could be further improved
  • Advanced driver assistance systems might be limited or optional compared to global counterparts
  • Requires regular maintenance and use of genuine spare parts for optimal performance
  • Initial purchase price can be a significant investment for smaller operators
  • AdBlue consumption adds to the operational cost due to emission norms
  • The learning curve for new drivers on modern features can be steep
  • Heavy duty nature means higher tire wear and tear

Details

Tata Signa 4225 TK Features & Specifications

8 categories

Performance

12 items

Max Power 250 hp
Engine Displacement (cc) 6692 cc
Fuel Tank (Litres) 300 Ltr
Engine Cummins ISBe 6.7L
Fuel Type Diesel
Emission Norms BS VI
Max Torque 950 Nm
Mileage 2.25-3.25 kmpl
Max Speed (km/h) 80
Engine Cylinders 6
Product Type L5N (High Speed Goods Carrier)
Carrier Type Goods Carrier

Dimension

6 items

Overall Width (mm) 2540
Overall Height (mm) 3067
Ground Clearance (mm) 300
Wheelbase (mm) 6700
Axle Configuration 10x2/10x4 (Optional)
Size (Cu. M) 24m3 Box

Transmission & Loading Capacity

7 items

Transmission Manual
Payload (Kgs) 32000 Kgs
GVW / GCW (Kgs) 42000 kg
Kerb Weight (Kgs) 10000
Gear Box G1150 9 speed Gearbox with crawler & one reverse
Clutch 430 mm dia single plate dry friction organic lining
Power SteeringYes

Features

14 items

Steering Power Steering
A/CYes
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Tiltable Steering Tilt and telescopic
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver Seat 6 way adjustable
Seating Capacity D+1
Tubeless TyresNo
Seat BeltsYes
Hill HoldYes

Brakes & Suspension

7 items

Brakes New iCGT Brakes
Front Axle Forged I Beam Reverse Elliot Type Drop Beam
Front Suspension Parabolic Leaf Spring Semi Elliptical leaf Spring
Rear Axle Single Reduction,Extra Heavy Duty,Hypoid Gears,Fully Floating Axle Shafts
Rear Suspension Semi Elliptical Leaf Spring Bogie Suspension
ABSYes
Parking BrakesNo

Body Option & Cabin Type

4 items

Chassis Type Chassis with Cabin
Body Option Box body
Cabin Type Day and Sleeper Cabin
Tiltable Cabin Hydraulically tiltable

Tyres

3 items

Number of Tyre 14
Rear Tyre 295/90 R20 (in 10x2 configuration), 11R20 (in 10x4 configuration)
Front Tyre 295/90 R20 in 10x2 configuration, 11R20 in 10x4 configuration

Others

3 items

ChassisYes
Battery(Volts) 12 V
Fog LightsNo

Alternatives

Tata Signa 4225 TK Alternatives

Truck Options

Explore More Truck Options

Expert Review

Tata Signa 4225 TK Expert Review

Tata Signa 4225.TK – Price, Mileage, Specifications and Features

Tata Signa 4225.TK is a heavy-duty 14-wheel tipper designed for mining, construction, infrastructure and bulk material transportation. With a gross vehicle weight (GVW) of 42 tonnes, a powerful Cummins diesel engine and a high-capacity tipper body, it is engineered to handle demanding operations across challenging terrains. Its robust chassis, advanced drivetrain and spacious sleeper cabin make it a suitable choice for businesses involved in large-scale material movement.

Price in India

Tata Signa 4225.TK has an indicative ex-showroom price starting from approximately ₹56.62 lakh. The final price may vary depending on the location, dealership, taxes and selected configuration.

Engine and Performance

Tata Signa 4225.TK is powered by a Cummins ISBe 6.7-litre, six-cylinder BS6 diesel engine with a displacement of 6,692cc. It produces a maximum power of 250 HP at 2,300 rpm and peak torque of 950 Nm. This engine delivers the pulling strength required for transporting heavy construction materials, aggregates and mining loads.

It is paired with a Tata G1150 9-speed manual gearbox featuring a crawler gear and one reverse gear. The 430 mm single-plate dry-friction clutch supports reliable power transmission during demanding tipper operations.

Mileage and Fuel Tank Capacity

Tata Signa 4225.TK offers an indicative mileage of approximately 2.25–3.25 kmpl, depending on load, terrain, driving habits and operating conditions. It comes with a 300-litre HDPE diesel fuel tank, helping support extended working schedules and reducing frequent refuelling requirements.

Dimensions and Load Capacity

The truck has a gross vehicle weight of 42,000 kg and an approximate payload capacity of 32,000 kg. It features a 6,700 mm wheelbase and a 14-wheel configuration. The tipper is equipped with a 24-cubic-metre box body, making it suitable for transporting large quantities of bulk materials. Its heavy-duty chassis is designed to withstand demanding construction and mining operations.

Cabin and Comfort Features

Tata Signa 4225.TK features a spacious sleeper cabin designed to improve driver comfort during long working hours. Depending on the configuration, features include air conditioning, power steering, tilt and telescopic steering, a six-way adjustable driver seat, a driver information display and telematics support. High-speed USB charging ports and enhanced storage space further improve convenience.

Safety and Suspension

The truck features a heavy-duty forged I-beam front axle and a robust rear axle arrangement. Its suspension system includes parabolic or semi-elliptical leaf springs at the front and bogie suspension at the rear, depending on the configuration. The lift axle is equipped with air suspension. The iCGT braking system, engine brake and hill-start assistance help provide improved control during demanding operations.

Applications and Practical Use

Tata Signa 4225.TK is suitable for transporting sand, gravel, coal, stone aggregates, ores, minerals and construction debris. It is particularly useful for mining operations, quarrying, road construction, infrastructure development and large-scale industrial projects where efficient bulk material movement is essential.

Conclusion

Tata Signa 4225.TK combines a 250 HP Cummins engine, 950 Nm torque, a 42-tonne GVW and a 24-cubic-metre tipper body. With its 9-speed gearbox, heavy-duty chassis, advanced braking system and comfortable sleeper cabin, it is a capable option for construction companies, mining contractors and commercial fleet operators.

FAQ

Frequently Asked Questions About Tata Signa 4225 TK

Dimensions

Tata Signa 4225 TK Dimensions

What are the key dimensions of the Tata Signa 4225 Tk?

+
The Tata Signa 4225 Tk is a substantial heavy-duty truck with impressive dimensions, featuring a long wheelbase for stability. Exact figures can vary slightly based on specific configurations, but it’s designed to maximize payload while adhering to Indian road regulations. It is a large commercial vehicle.

What is the gross vehicle weight (GVW) of the Tata Signa 4225 Tk?

+
The Tata Signa 4225 Tk boasts a Gross Vehicle Weight (GVW) of 42,000 kg, indicating its immense carrying capacity. This significant GVW makes it a formidable choice among heavy-duty trucks for transporting large volumes of material. Its robust design supports this heavy load.

What is the typical tipper body capacity for the Signa 4225 Tk?

+
The Tata Signa 4225 Tk usually comes with a tipper body capacity ranging from 22 to 24 cubic meters, making it ideal for large-scale bulk material transport. These dimensions allow for efficient loading and unloading of heavy materials. This capacity contributes to its reputation as one of the best trucks for construction.

How does the size of the Tata Signa 4225 Tk affect its maneuverability?

+
Being a heavy-duty truck, the Tata Signa 4225 Tk requires careful maneuvering, especially in tight spaces. However, Tata has designed it with features like a good turning radius for its size to aid drivers. Understanding its dimensions helps operators navigate effectively.

What is the wheelbase of the Tata Signa 4225 Tk?

+
The Tata Signa 4225 Tk typically features a wheelbase of around 6700 mm (or similar, depending on specific variant), which provides excellent stability for carrying heavy loads. This extended wheelbase is crucial for distributing weight evenly and ensuring safe operation. These dimensions are critical for heavy-duty applications.

Is the ground clearance sufficient for rough Indian terrains?

+
Yes, the Tata Signa 4225 Tk offers ample ground clearance, making it perfectly suitable for rough Indian terrains, construction sites, and mining roads. This crucial dimension helps prevent underbody damage and allows it to navigate challenging paths. It's a key feature for these heavy-duty trucks.

Are there different chassis options available for this model?

+
The Tata Signa 4225 Tk primarily comes with a robust chassis designed for its heavy-duty tipper application. While specific body options for the tipper might vary, the underlying chassis is standardized for optimal performance. This strong chassis is a hallmark of Tata's commercial vehicles.
