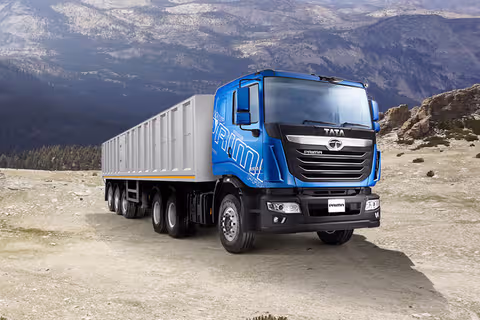

Tata Prima FL 5530.S truck

Tata Prima FL 5530.S

Ex-Showroom Price

₹42.32L

About

Looking for a heavy-duty truck that combines power, efficiency, and unwavering reliability for your demanding transportation needs? The Tata Prima Fl 5530.s is engineered to be a true game-changer in India's logistics and infrastructure sectors. It's a robust prime mover designed to tackle the toughest hauls with remarkable ease and superior economic advantage. When considering investment, the Tata Prima Fl 5530.s price in India is highly competitive for its advanced segment. You can expect the ex-showroom price to typically range from ₹45 Lakhs to ₹50 Lakhs, though this can vary based on location, specific configurations, and additional features. It offers exceptional value for money, considering its cutting-edge technology and powerful performance capabilities. The heart of the Tata Prima Fl 5530.s lies in its formidable Cummins ISBe 6.7L engine, delivering an impressive 300 HP and a massive 1100 Nm of torque. This ensures superior pulling power, even with the heaviest loads across challenging terrains and gradients. While specific figures vary based on operational conditions, the Tata Prima Fl 5530.s mileage is optimized for excellent fuel efficiency, providing an economical operational cost per trip. Its advanced driveline, intelligent gear ratios, and efficient powertrain contribute significantly to overall performance and lower fuel consumption, making it a cost-effective solution for your business. As a dedicated prime mover, the Tata Prima Fl 5530.s is built for monumental loads. It boasts a Gross Vehicle Weight (GVW) of 55,000 kg (55 tonnes) when combined with a suitable multi-axle trailer, making it an ideal choice for super heavy-duty applications. The sturdy, high-strength chassis and advanced suspension system ensure unmatched stability, safety, and durability, even when operating at maximum payload capacity. Its robust design allows it to comfortably haul various trailer types, from flatbeds and low-bed trailers to multi-axle container carriers, offering immense flexibility. The versatility of the Tata Prima Fl 5530.s makes it suitable for a wide array of demanding applications across India. It's the perfect choice for long-haul logistics, transporting heavy machinery, construction materials, and aggregates for large-scale mining and infrastructure projects. Whether it's seamless port operations, efficient inter-state freight movement, or critical industrial goods transportation, this truck performs admirably and reliably under diverse and challenging conditions. Users and buyers consistently praise the Tata Prima Fl 5530.s for its unwavering reliability, robust build quality, and driver-centric features. Many reviews highlight its comfortable and ergonomic cabin, powerful engine, and the extensive nationwide service network provided by Tata Motors. This strong support system ensures minimal downtime, readily available spare parts, and keeps your business moving forward, fostering immense trust among operators and fleet owners. While the Tata Prima Fl 5530.s stands out in its category, Tata Motors also offers other variants within the Prima range tailored to different needs and GVW capacities. In the competitive Indian market, its main rivals include powerful models like the Ashok Leyland 5525, BharatBenz 5228, and Eicher Pro 6055. However, the Prima 5530.s often edges out with its blend of advanced technology, superior driver comfort, and proven performance, making it a strong contender for the title of 'best truck in India' for heavy haulage operations. For businesses actively seeking a heavy-duty truck that offers unparalleled power, excellent fuel efficiency, and a steadfast commitment to reliability, the Tata Prima Fl 5530.s is an outstanding choice. Its competitive Tata Prima Fl 5530.s price in India, combined with its impressive Tata Prima Fl 5530.s mileage and substantial Tata Prima Fl 5530.s dimensions, makes it a true asset for any growing fleet. Invest in the Prima 5530.s today and confidently drive your business towards greater profitability and operational excellence.

Specifications

Tata Prima FL 5530.S Key Specifications

Top 12
Number of Tyres22
GVW55000 kg
Payload40000 Kgs
Mileage
  • 2.25-3.25 kmpl
Fuel Tank Capacity557 Ltr
Fuel TypeDiesel
Max Torque1100 Nm @ 1100-1700 rpm
Max Speed90 Km/h
Power
  • 300 hp
Gear Box9 Forward + 1 Reverse
Engine6700 cc
Chassis TypeChassis with Cabin

All Variants

Tata Prima FL 5530.S Variants

1 variant
VariantPriceMileageFuelAction
3890/BS-VI₹40.32LEx-showroom Price2.25-3.25 kmplDieselDetails

Series

Explore Tata Series

8 series

Applications

Tata Prima FL 5530.S Key Use Cases

2 use cases

Use Case 1

Automobile transport

Use Case 2

Bulk cargo movement

Compare

Compare Tata Prima FL 5530.S With Similar Trucks

Tata Prima FL 5530.S

Tata Prima FL 5530.S

Ashok Leyland 3520-8x2 LA

Ashok Leyland 3520-8x2 LA

Ashok Leyland 3520-8x2 TS

Ashok Leyland 3520-8x2 TS

Mahindra Blazo X 42 PUSHER AXLE

Mahindra Blazo X 42 PUSHER AXLE

Price₹42.32 L₹42.50 L₹42.50 L₹42.76 L
Body TypeTrailerTrailerTrailerTrailer
Engine6700 cc5660 cc5660 cc7200 cc
Power300 hp197 hp197 hp206 kW
Max Torque1100 Nm @ 1100-1700 rpm700 Nm700 Nm1050 Nm
Mileage2.25-3.25 kmpl3.5 kmpl4.5 kmpl4 kmpl
GVW55000 kg35000 kg35000 kg42000 kg
Payload40000 Kgs12000 Kgs28000 KgsNA
Tyres22121214
FuelDieselDieselDieselDiesel
Gear Box9 Forward + 1 Reverse6 speed synchromesh, 6 Forward + 1 Reverse6 speed synchromesh, 6 Forward + 1 Reverse6 Forward + 1 Reverse
ChassisChassis with CabinChassis with CabinChassis with CabinChassis with Cabin
View Full Comparison & Add More Trucks →

Pros & Cons

Tata Prima FL 5530.S Pros & Cons

What We Like

8
  • Powerful Cummins engine delivers strong performance for heavy-duty applications
  • High gross vehicle weight rating allows for substantial payload capacity
  • Advanced BS6 compliant engine ensures lower emissions and improved fuel efficiency
  • Spacious and comfortable Prima cabin reduces driver fatigue on extended journeys
  • Robust chassis and driveline components contribute to exceptional durability and reliability
  • Extensive service network across India provides easy access to maintenance and support
  • Equipped with modern features like telematics for efficient fleet management and tracking
  • Strong gradeability makes it suitable for challenging terrains and steep inclines

What We Don't Like

7
  • Higher initial purchase cost compared to conventional heavy-duty trucks in its segment
  • Fuel consumption can be substantial when operating fully loaded over long distances
  • Maintenance of advanced BS6 engines and complex systems may require specialized technicians
  • Larger dimensions and heavier kerb weight can make maneuvering difficult in congested urban environments
  • Availability of specific advanced spare parts might be limited in very remote regions
  • Potential for complex electronic systems to develop faults, leading to increased downtime
  • Drivers may require additional training to fully utilize all modern features and systems effectively

Details

Tata Prima FL 5530.S Features & Specifications

8 categories

Performance

17 items

Max Power 300 hp
Engine Displacement (cc) 6700 cc
Fuel Tank (Litres) 557 Ltr
Engine Cummins ISBe 6.7 Litre Engine
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 1100 Nm @ 1100-1700 rpm
Mileage City 1.8-2.5
Mileage Highway 2.5-3.5
Mileage 2.25-3.25 kmpl
Gradeability (%) 15.58 %
Max Speed (km/h) 90
Engine Cylinders 6
Turning Radius (mm) 14220
Battery Capacity 100 Ah
Product Type L5N (High Speed Goods Carrier)
Carrier Type Goods Carrier

Dimension

4 items

Overall Width (mm) 2500
Ground Clearance (mm) 229
Wheelbase (mm) 3890
Axle Configuration 6x4

Transmission & Loading Capacity

7 items

Transmission Manual
Payload (Kgs) 40000 Kgs
GVW / GCW (Kgs) 55000 kg
Kerb Weight (Kgs) 15000
Gear Box 9 Forward + 1 Reverse
Clutch 430 Dia , Single plate, Dry friction type, Pull type
Power SteeringYes

Features

14 items

Steering Power Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringYes
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver SeatYes
Seating Capacity D+2
Tubeless TyresNo
Seat BeltsYes
Hill HoldNo

Brakes & Suspension

7 items

Brakes Air Brakes
Front Axle Heavy duty forged I-beam Reverse Elliot type
Front Suspension Parabolic leaf spring with rubber bush
Rear Axle Single reduction axle in pressed steel welded beam with differential carrier housing. Fully floating axle shafts
Rear Suspension Two spring balance beam Bogie with semi elliptic multileaf spring & rubber Mounted torque rods and V-rod
ABSNo
Parking BrakesYes

Body Option & Cabin Type

4 items

Chassis Type Chassis with Cabin
Body Option Box body
Cabin Type Day and Sleeper Cabin
Tiltable CabinYes

Tyres

3 items

Number of Tyre 22
Rear Tyre 295/90R20
Front Tyre 295/90R20

Others

3 items

ChassisYes
Battery(Volts) 12 V
Fog LightsYes

Alternatives

Tata Prima FL 5530.S Alternatives

Truck Options

Explore More Truck Options

Expert Review

Tata Prima FL 5530.S Expert Review

Looking for a truck that means serious business? The Tata Prima FL 5530.S is engineered to dominate India’s toughest roads and heaviest loads. This prime mover is more than just a truck; it’s a reliable partner for your ambitious logistics and transportation needs. Let’s dive deep into why this model is often considered a game-changer in the heavy-duty segment.

Tata Prima FL 5530.S Price in India

When it comes to investing in a robust heavy-duty truck, the Tata Prima FL 5530.S offers exceptional value. The Tata Prima FL 5530.S price in India typically ranges from an ex-showroom price of ₹38 Lakh to ₹46 Lakh. Please note, prices can vary based on state taxes, chosen variants, and dealer-specific offers, so it's always best to check with an authorized Tata Motors dealer for the most accurate quote.

Unmatched Tata Prima FL 5530.S Mileage & Performance

Power and efficiency go hand-in-hand with the Tata Prima FL 5530.S. Equipped with a high-performance Cummins ISBe 6.7L engine, it delivers a robust power output of around 250 HP and an impressive torque of 950 Nm. This ensures effortless hauling of heavy loads across diverse terrains.

While heavy-duty prime movers aren't known for car-like mileage, the Tata Prima FL 5530.S mileage is optimized for its class, offering approximately 2.5 to 3.5 km/l, depending on driving conditions, load, and road type. Its advanced drivetrain and intelligent transmission contribute to better fuel economy, translating into lower operational costs and higher profits for your business.

Tata Prima FL 5530.S Dimensions & Capacity

The Tata Prima FL 5530.S is built to handle massive loads with remarkable stability. Its Gross Vehicle Weight (GVW) stands at an impressive 55,000 kg (55 tonnes), showcasing its capability to pull multi-axle trailers with ease. The robust chassis and ideal wheelbase provide excellent stability and control, even when fully loaded on challenging roads.

As a prime mover, its payload capacity is defined by the trailer it hauls, allowing flexibility for various cargo types like steel coils, cement bags, heavy machinery, or petroleum products. The well-designed Tata Prima FL 5530.S dimensions make it a versatile choice for various logistics operations.

Versatile Use Cases for the Tata Prima FL 5530.S

This powerful truck is a workhorse designed for a multitude of heavy-duty applications. The Tata Prima FL 5530.S excels in long-haul logistics, inter-state freight movement, and transportation of industrial goods. It's perfectly suited for sectors like construction, infrastructure development, cement, steel, and oil & gas.

Whether you need to transport bulk raw materials or finished products across vast distances, this truck delivers. Its rugged build and high pulling power are ideal for businesses demanding maximum uptime.

Buyer Reviews & Tata's Unmatched Reliability

Owners and drivers consistently praise the Tata Prima FL 5530.S for its robust build quality, comfortable cabin, and low maintenance requirements. Many consider it a dependable partner that rarely breaks down, earning its reputation as a reliable truck. Tata Motors’ extensive service network across India further enhances its appeal, offering quick support and genuine spare parts availability.

Customers appreciate the peace of mind that comes with Tata’s renowned after-sales service. This commitment makes it a trustworthy investment for any fleet owner.

Variants & Key Competitors

The Tata Prima series offers several configurations, and the FL 5530.S is a prime example of its heavy-duty prime mover offerings. While the 5530.S is a specific model, Tata ensures there are options to suit varied business needs within the Prima family. In the highly competitive Indian market, the Tata Prima FL 5530.S stands strong against rivals like the Ashok Leyland 5525 and BharatBenz 5528T. It often wins on its balance of power, efficiency, and the widespread trust of the Tata brand, making it a strong contender for the best truck in India in its segment.

Why Choose the Tata Prima FL 5530.S?

In conclusion, the Tata Prima FL 5530.S emerges as an outstanding choice for any business seeking a powerful, efficient, and reliable heavy-duty prime mover. With its competitive Tata Prima FL 5530.S price in India, impressive Tata Prima FL 5530.S mileage, and robust Tata Prima FL 5530.S dimensions, it promises lower operational costs and higher profitability. It’s a long-term asset designed to drive your success forward. Visit TruckOnWheels.com to explore more and find your perfect trucking solution!

FAQ

Frequently Asked Questions About Tata Prima FL 5530.S

Dimensions

Tata Prima FL 5530.S Dimensions

What are the overall dimensions of the Tata Prima FL 5530.s?

+
The Tata Prima FL 5530.s boasts substantial dimensions suitable for its heavy-duty applications. While specific figures can vary slightly based on configuration, it features an impressive overall length and width designed for stability and load capacity. These dimensions ensure it meets the requirements for large-scale freight transport.

What is the wheelbase of the Tata Prima FL 5530.s?

+
The wheelbase of the Tata Prima FL 5530.s is optimized for stability and weight distribution, crucial for a heavy-duty truck carrying significant loads. A typical wheelbase configuration for this model is around 3890 mm or similar, balancing maneuverability with cargo support. These dimensions contribute to its excellent road handling.

How does its turning radius help in Indian city driving?

+
Despite being a heavy-duty truck, the Tata Prima FL 5530.s is engineered with a respectable turning radius for its class. This helps drivers navigate tighter turns and urban areas, which is often challenging for large commercial vehicles on busy Indian roads. Good maneuverability is key for efficient city logistics.

What is the typical loading area or deck length of the Tata Prima FL 5530.s?

+
The Tata Prima FL 5530.s typically offers a generous loading area, with deck lengths designed to accommodate large volumes of cargo. Depending on the body type and specific variant, the load body dimensions can vary to suit different freight requirements. This ample space makes it efficient for bulk transport.

Is the ground clearance adequate for diverse Indian road conditions?

+
Yes, the Tata Prima FL 5530.s features ample ground clearance, making it well-suited for diverse Indian road conditions, including rough patches and uneven surfaces. This ensures protection for underbody components and allows for smoother transit over varied terrains. It's built to handle the challenges of our roads.

What are the cabin dimensions like for driver comfort?

+
The cabin of the Tata Prima FL 5530.s is designed with driver comfort in mind, featuring spacious dimensions for long hours on the road. It includes ergonomic seating, ample head and legroom, and intelligent storage solutions. This focus on driver well-being enhances productivity and reduces fatigue during long hauls, a key factor in heavy-duty trucks.

How do the overall dimensions of this truck impact its maneuverability?

+
While its large dimensions are essential for high load capacity, the Tata Prima FL 5530.s is engineered for balanced maneuverability. Its optimized steering and chassis design help drivers handle the vehicle effectively, even in challenging conditions. This ensures it performs well both on open highways and through tighter routes.
