Specifications

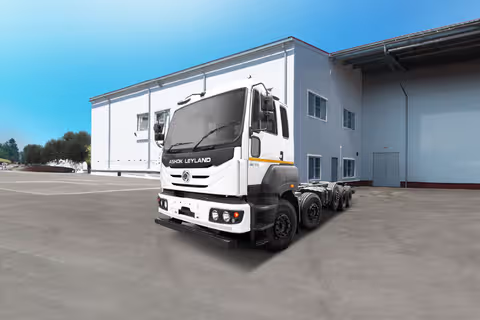

Ashok Leyland 4220-10x2 STLA Key Specifications
Number of Tyres14
GVW42000 kg
Payload29000 Kgs
Mileage
- 3.5 kmpl
Fuel Tank Capacity375 Ltr
Fuel TypeDiesel
Max Torque700 Nm
Max Speed80 Km/h
Power
- 200 hp
Gear Box6 Forward + 1 Reverse
Engine5300 cc
Chassis TypeChassis with Cabin
All Variants
Ashok Leyland 4220-10x2 STLA Variants
| Variant Name | Price | Mileage | Fuel Type | Action |
|---|---|---|---|---|
| 6600/Cowl & Chassis/(31 ft) | ₹46.00LEx-showroom Price | 3.5 kmpl | Diesel | Details |
| 6600/Cowl & Chassis/(28 ft) | ₹46.00LEx-showroom Price | 3.5 kmpl | Diesel | Details |
| 6600/Cabin & Chassis/(28 ft) | ₹46.00LEx-showroom Price | 3.5 kmpl | Diesel | Details |
| 6600/Cabin & Chassis/(30 ft) | ₹46.00LEx-showroom Price | 3.5 kmpl | Diesel | Details |
Series
Explore Ashok-leyland Series
Applications
Ashok Leyland 4220-10x2 STLA Key Use Cases
Use Case 1
Automobile transport
Use Case 2
Bulk cargo movement
Compare
Compare Ashok Leyland 4220-10x2 STLA With Similar Trucks
Pros & Cons
Ashok Leyland 4220-10x2 STLA Pros & Cons
What We Like
7- High carrying capacity for heavy goods transport
- Improved fuel efficiency when running empty or partially loaded due to lift axle
- Durable and robust construction suitable for diverse road conditions
- Extensive service network and spare parts availability across India
- Competitive operational costs and good resale value in the market
- Modern cabins often provide improved driver comfort for long hauls
- Proven reliability from a well-established Indian manufacturer
What We Don't Like
6- Can be challenging to maneuver in congested areas or narrow city roads
- Higher initial purchase price compared to lower capacity trucks
- Significant fuel consumption when carrying full loads over long distances
- Maintenance can be more complex and potentially costly due to its size and configuration
- Requires experienced and skilled drivers for optimal and safe operation
- Compliance with axle load regulations needs careful management to avoid penalties
Details
Ashok Leyland 4220-10x2 STLA Features & Specifications
Performance
17 items
Performance
17 items
Max Power 250 hp
Engine Displacement (cc) 5300 cc
Fuel Tank (Litres) 375 Ltr
Engine H series CRS with iGen6 Technology
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 900 Nm
Mileage City 1-2
Mileage Highway 2-3
Mileage 3.5 kmpl
Gradeability (%) 22 %
Max Speed (km/h) 80
Engine Cylinders 6
Turning Radius (mm) 11850
Battery Capacity 120 Ah
Carrier Type Goods Carrier
Product Type L5N (High Speed Goods Carrier)
Dimension
6 items
Dimension
6 items
Overall Length (mm) 10960
Overall Width (mm) 2570
Overall Height (mm) 3110
Ground Clearance (mm) 253
Wheelbase (mm) 6600
Axle Configuration 10x2
Transmission & Loading Capacity
7 items
Transmission & Loading Capacity
7 items
Transmission Manual
Payload (Kgs) 29000 Kgs
GVW / GCW (Kgs) 42000 kg
Kerb Weight (Kgs) 13000
Gear Box 6 Forward + 1 Reverse
Clutch 380 mm dia - Single dry plate, organic clutch with air assisted hydraulic booster
Power SteeringYes
Features
14 items
Features
14 items
Steering Power Steering
A/C Optional
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringYes
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver SeatYes
Seating Capacity D+1
Tubeless Tyres Optional
Seat BeltsYes
Hill HoldNo
Brakes & Suspension
7 items
Brakes & Suspension
7 items
Brakes Air Brakes
Front Axle Forged I section - Reverse Elliot type Optional Unitized wheel bearings/Anti roll bar
Front Suspension Semi-elliptic multi leaf/Parabolic springs (optional)
Rear Axle Fully floating single speed rear axle, RAR 5.63 / 5.83 / 6.43 1. Optional Unitized wheel bearings
Rear Suspension Non-reactive suspension with Slipper ended suspension (optional)
ABSYes
Parking BrakesYes
Body Option & Cabin Type
4 items
Body Option & Cabin Type
4 items
Chassis Type Chassis with Cabin
Body Option Customizable body
Cabin Type Day and Slipper Cabin
Tiltable CabinNo
Tyres
3 items
Tyres
3 items
Number of Tyre 14
Rear Tyre 295/90R20 - 16 PR
Front Tyre 295/90R20 - 16 PR
Others
4 items
Others
4 items
ChassisYes
Loading Platform Area(Sq.ft) 784
Battery(Volts) 24 V
Fog LightsNo
Alternatives
Ashok Leyland 4220-10x2 STLA Alternatives
Truck Options
Explore More Truck Options
News
Truck News
Expert Review
Ashok Leyland 4220-10x2 STLA Expert Review
Seeking a truck that delivers power, performance, and reliability? The Ashok Leyland 4220 10x2 Stla is a formidable workhorse on Indian roads, engineered to tackle the heaviest loads with ease. This heavy-duty multi-axle truck from Ashok Leyland is a top choice for fleet owners and logistics businesses nationwide.
Ashok Leyland 4220 10x2 Stla Price in India
For your investment, the Ashok Leyland 4220 10x2 Stla price in India is crucial. Ex-showroom prices typically range from ₹35 Lakhs to ₹45 Lakhs, varying by region, dealer, and specific configurations. Always contact your nearest Ashok Leyland dealer for accurate pricing and financing options.
Mileage & Performance
Performance is where the Ashok Leyland 4220 10x2 Stla shines. Powered by its robust H-series engine with CRS technology, it delivers impressive power (around 200 HP) and high torque for superior pulling capability, ensuring seamless operation even with maximum loads.
Regarding Ashok Leyland 4220 10x2 Stla mileage, owners report practical fuel efficiency between 3.5 to 4.5 km/l, depending on conditions. Its advanced drivetrain ensures efficient power delivery, reducing long-haul operational costs.
Dimensions & Capacity
Understanding the Ashok Leyland 4220 10x2 Stla dimensions is crucial. With a Gross Vehicle Weight (GVW) of 42,000 kg (42 tonnes), this truck is built for heavy-duty hauling. It offers an excellent payload capacity, typically ranging from 30 to 32 tonnes, ideal for bulk goods transport.
Customizable cargo body options often include lengths from 28 to 32 feet, providing ample space. The 10x2 axle configuration ensures superior load distribution, enhanced stability, and better tire life for safer, economical operations.
Use Cases
The versatility of the Ashok Leyland 4220 10x2 Stla makes it suitable for diverse applications. It's a prime choice for transporting construction materials (cement, sand, aggregates), industrial goods, and heavy machinery. Logistics companies find it indispensable for long-distance parcel and general cargo.
Furthermore, it excels in bulk haulage for sectors like mining, large-scale agriculture, and inter-state logistics. Its robust design suits demanding routes and diverse operating environments, making it a truly multi-purpose workhorse.
Reviews & Reliability
Ashok Leyland has built a reputation for reliability, and the 4220 10x2 Stla upholds this legacy. Buyers frequently praise its sturdy build quality, minimal maintenance, and excellent uptime, crucial for profitability. An extensive service network and readily available spare parts across India further enhance trust and reduce potential downtime.
Variants & Competitors
The Ashok Leyland 4220 10x2 Stla offers various customization options, including different wheelbase configurations and cabin types (day or sleeper). In the competitive Indian heavy-duty truck market, it stands strong against rivals like the Tata Signa 4225.T, BharatBenz 4228R, and Eicher Pro 6042.
While competitors offer compelling options, the Ashok Leyland 4220 distinguishes itself with proven fuel efficiency, robust aggregate quality, and competitive Ashok Leyland 4220 10x2 Stla specifications at a strong value proposition.
Conclusion
In summary, the Ashok Leyland 4220 10x2 Stla is a smart investment for anyone seeking a powerful, efficient, and reliable heavy-duty truck in India. Its impressive load capacity, good mileage, and robust build quality ensure long-term profitability. For the best truck in India for heavy haulage, offering a perfect blend of performance and value, the 4220 10x2 Stla should be a top consideration. Drive your business forward with Ashok Leyland!
FAQ
Frequently Asked Questions About Ashok Leyland 4220-10x2 STLA
Dimensions
Ashok Leyland 4220-10x2 STLA Dimensions
What are the overall dimensions (length, width, height) of the Ashok Leyland 4220 10x2 STLA?
+−
The Ashok Leyland 4220 10x2 STLA comes with varying body and chassis options, but typical overall dimensions for a fully built truck would be around 11,000-12,000 mm in length, 2,500 mm in width, and 3,000-3,200 mm in height. These dimensions are standard for heavy-duty trucks in India. Specific measurements can vary based on the cabin and load body configuration chosen.
What is the wheelbase of this truck, and why is it important?
+−
The wheelbase of the Ashok Leyland 4220 10x2 STLA generally ranges from 6,000 mm to 6,600 mm, depending on the variant. A longer wheelbase contributes to better stability, especially when carrying heavy loads, and provides a larger platform for cargo body construction. This is a critical dimension for the truck's overall handling and load capacity.
What is the ground clearance of the Ashok Leyland 4220?
+−
The Ashok Leyland 4220 10x2 STLA typically offers a good ground clearance of approximately 250-270 mm. This ample ground clearance is crucial for navigating varied Indian road conditions, including potholes and uneven terrain. It helps prevent damage to the undercarriage and ensures smooth transit.
How do the dimensions of the 4220 affect its maneuverability on Indian roads?
+−
While a heavy-duty truck, the Ashok Leyland 4220 10x2 STLA is designed for optimal maneuverability despite its substantial dimensions. Its steering system and carefully engineered wheelbase balance stability with ease of handling on highways and through city fringes. Drivers find it manageable for its class on Indian roads.
Are there different chassis length options available for the Ashok Leyland 4220?
+−
Yes, Ashok Leyland often provides different chassis length options for the 4220 10x2 STLA to cater to various cargo requirements and body types. These options allow buyers to customize the truck for specific applications, maximizing its utility and payload capacity. It's advisable to check with a dealer for available chassis dimensions.
What is the cabin size like, and how does it contribute to driver comfort?
+−
The Ashok Leyland 4220 10x2 STLA features a spacious and ergonomically designed cabin that significantly enhances driver comfort during long hauls. It often includes features like comfortable seating, ample storage, and good ventilation to reduce driver fatigue. A well-designed cabin is crucial for productivity and safety on extended journeys.
How does the turning radius compare to other heavy-duty trucks?
+−
For its class and dimensions, the Ashok Leyland 4220 10x2 STLA offers a competitive turning radius designed to navigate India's varied road network. While it's a large vehicle, engineering ensures it can handle tight turns and congested areas reasonably well for a heavy-duty truck. This balances its large carrying capacity with practical maneuverability.
