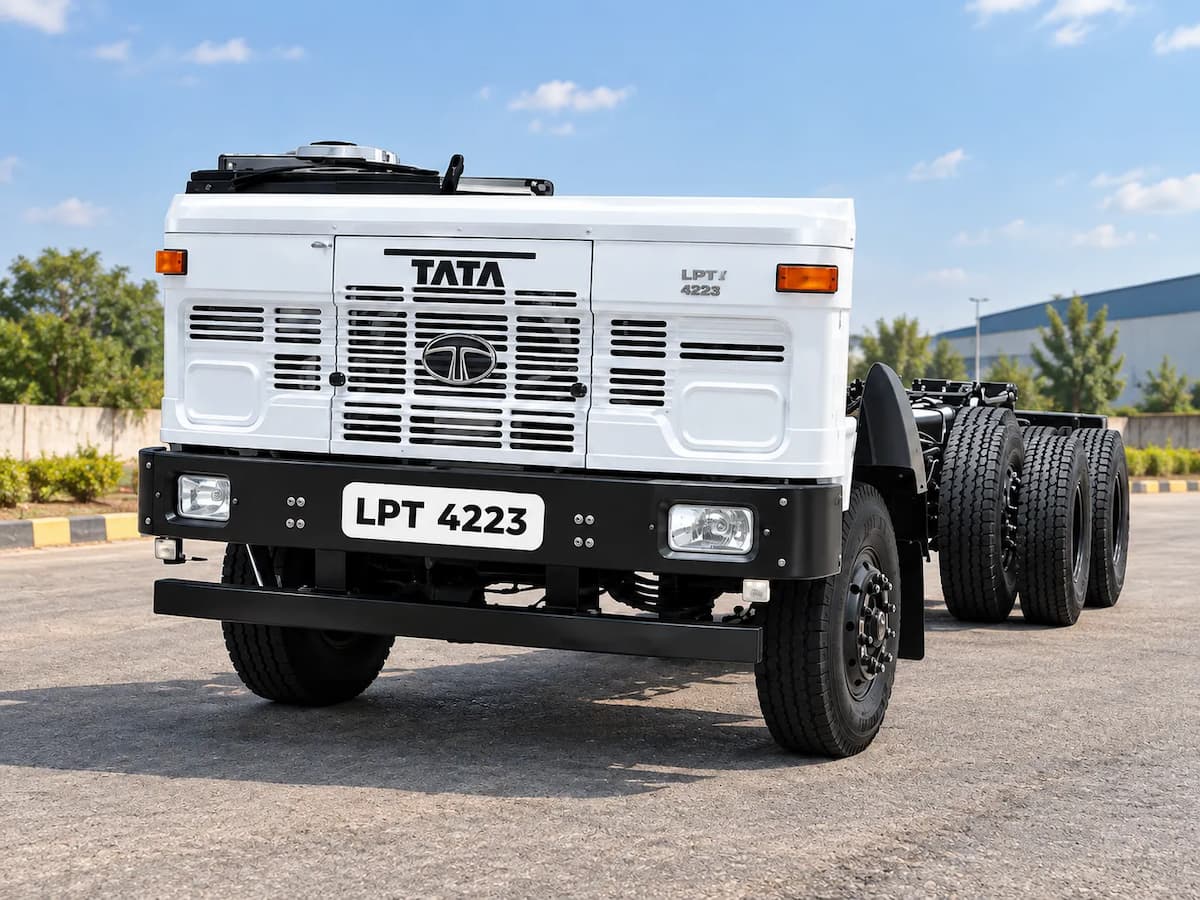

Tata LPT 4223: Price, Mileage, Specifications and Features

The Tata LPT 4223 is a heavy-duty commercial truck designed for long-distance transportation, bulk cargo movement and industrial logistics. It features a 10x2 axle configuration, a 42,000 kg gross vehicle weight (GVW) and multiple load-body options. The truck is available in pusher and tag axle configurations, offering different wheelbases and loading lengths to suit various transportation requirements.

Engine and Performance

The Tata LPT 4223 is powered by a 5.9-litre Cummins ISBe diesel engine with a displacement of 5,883 cc. The six-cylinder engine produces 228 HP at 2,500 rpm and 810 Nm of torque between 1,000 and 1,800 rpm. It is paired with a 6-speed manual gearbox and a 380 mm single-plate dry-friction clutch with clutch booster.

The truck offers a maximum speed of approximately 80 km/h and a gradeability of around 18.3%. Its diesel engine and heavy-duty transmission are designed for demanding cargo transportation.

Mileage and Fuel Tank

The Tata LPT 4223 has an indicative mileage of around 3–4 kmpl, depending on load, road conditions and driving style. Its fuel tank capacity varies by axle configuration, with a 300-litre tank for the pusher axle version and a 300-litre tank for the tag axle version.

Payload and Loading Capacity

With a 28,000 kg GVW, the Tata LPT 4223 is designed to carry heavy commercial loads. It is available in chassis-with-cabin, face-cowl and chassis, and cabin-with-load-body configurations. Buyers can choose from fixed-side-deck and high-side-deck body options.

The truck offers different loading lengths, including approximately 27 ft for the tag axle version and 27.5 ft or 31.7 ft for the pusher axle version, depending on the configuration.

Dimensions and Chassis

The Tata LPT 4223 has a ladder-type heavy-duty chassis with riveted or bolted cross members. Its wheelbase measures 6,255 mm in the tag axle version and 6,750 mm in the pusher axle version. The overall chassis length varies by configuration, while the truck has a listed width of approximately 2,434 mm and ground clearance of around 210 mm.

Its 10x2 axle configuration includes twin-steer front axles and a lift axle arrangement. These chassis and axle options support different load-body requirements and operating conditions.

Brakes and Suspension

The Tata LPT 4223 is equipped with air brakes and ABS, along with an engine exhaust brake for additional braking support. The front suspension uses parabolic leaf springs with telescopic shock absorbers, while the rear suspension features semi-elliptical leaf springs with a bell-crank mechanism. The lift axle uses a pneumatic arrangement.

Cabin and Features

Depending on the configuration, the Tata LPT 4223 is available with a Signa sleeper cabin or other cabin options. It features hydraulic power steering with tilt and telescopic adjustment. The cabin can include an adjustable driver seat, digital instrument cluster and optional air conditioning.

Additional equipment includes a gear shift advisor and multi-drive modes designed to help drivers adapt gear selection to different load and road conditions.

Tyres and Utility

The Tata LPT 4223 is offered with 295/80 R22.5 tubeless tyres or 295/90 R20 tube-type tyres, depending on the configuration. The truck has 14 main tyres, with an additional spare listed in some specifications. Its combination of heavy-duty chassis construction, multiple loading lengths and axle options makes it suitable for cement, construction materials, agricultural products, industrial goods and logistics transportation.

Key Specifications

The Tata LPT 4223 features a 5,883 cc six-cylinder Cummins diesel engine producing 228 HP and 810 Nm of torque. It has a 42,000 kg GVW, a 6-speed manual transmission, a 10x2 axle configuration and a maximum speed of approximately 80 km/h. With pusher and tag axle options, multiple load-body lengths, air brakes and a heavy-duty ladder chassis, it is designed for demanding heavy-cargo transportation.
