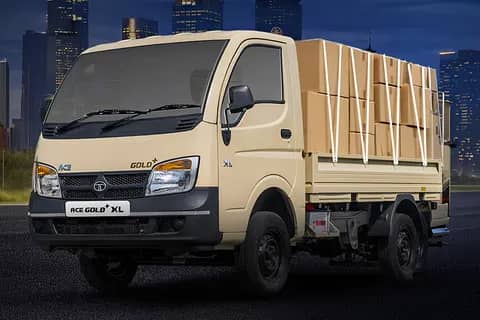

Tata Ace Gold Plus XL truck

Tata Ace Gold Plus XL

Ex-Showroom Price

₹6.62L

About

The Tata Ace Gold Plus XL is a light commercial vehicle designed for last-mile delivery and small-business transportation. It is powered by a 700 cc, two-cylinder turbocharged diesel engine that produces 22 PS of maximum power at 3,600 rpm and 55 Nm of peak torque between 2,000 and 2,600 rpm. The engine is paired with a 5-speed manual gearbox. The vehicle has a gross vehicle weight (GVW) of 1,975 kg and a payload capacity of up to 1,000 kg, making it suitable for carrying substantial loads for a mini truck in its category. The Tata Ace Gold Plus XL measures approximately 4,075 mm in length, 1,500 mm in width and 1,858 mm in height, with a 2,250 mm wheelbase and 174 mm ground clearance. Its extended cargo deck provides additional loading space for commercial goods. The truck features parabolic leaf-spring front suspension, semi-elliptical leaf-spring rear suspension and tubeless tyres. Its Lean NOx Trap (LNT) technology eliminates the need for Diesel Exhaust Fluid (DEF), helping simplify maintenance. With its higher payload capacity and extended load body, the Tata Ace Gold Plus XL is suitable for transporting FMCG products, groceries, fruits and vegetables, milk cans, water bottles, courier parcels, textiles and e-commerce shipments. Its compact design makes it practical for urban deliveries, narrow streets and regular short-distance commercial trips. Actual fuel efficiency and operating costs depend on load, road conditions, driving style and maintenance.

Specifications

Tata Ace Gold Plus XL Key Specifications

Top 12
Number of Tyres4
GVW1975 kg
Payload1000 Kgs
Mileage
  • 20-22 kmpl
Fuel Tank Capacity30 Ltr
Fuel TypeDiesel
Max Torque55 Nm
Max Speed62 km/h
Power
  • 16.2 kW
Gear Box5 Forward + 1 Reverse
Engine700 cc
Chassis TypeChassis with Cabin

All Variants

Tata Ace Gold Plus XL Variants

1 variant
VariantPriceMileageFuelAction
2250/CLB₹6.62LEx-showroom Price20-22 kmplDieselDetails

Series

Explore Tata Series

8 series

Applications

Tata Ace Gold Plus XL Key Use Cases

4 use cases

Use Case 1

Last-Mile Delivery (E-commerce & Courier)

Use Case 2

Small Business Transport

Use Case 3

Construction & Hardware Supply

Use Case 4

Water Can & LPG Cylinder Delivery

Compare

Compare Tata Ace Gold Plus XL With Similar Trucks

Tata Ace Gold Plus XL

Tata Ace Gold Plus XL

Mahindra Supro Profit Truck Excel CNG Duo

Mahindra Supro Profit Truck Excel CNG Duo

Mahindra Supro Profit Truck Mini

Mahindra Supro Profit Truck Mini

Ashok Leyland Saathi

Ashok Leyland Saathi

Price₹6.62 L₹6.38 L₹5.72 L - ₹6.38 L₹6.54 L
Body TypeMini TrucksMini TrucksMini TrucksMini Trucks
Engine700 ccPositive Ignition CNG Engine 909 cc1478
Power16.2 kW20.01 Kw19.4 kW45 hp
Max Torque55 Nm60 Nm55 Nm110 Nm
Mileage20-22 kmpl24.88 km/kg22.02 kmpl20 kmpl
GVW1975 kg1945 kg1802 kg2288 kg
Payload1000 Kgs750 Kgs800 Kgs1120 Kgs
Tyres4444
FuelDieselCNG+PetrolDieselDiesel
Gear Box5 Forward + 1 Reverse5 Forward + 1 Reverse4 Forward + 1 Reverse5F + 1R Manual Gearbox
ChassisChassis with CabinChassis with CabinChassis with CabinChassis with Cabin
View Full Comparison & Add More Trucks →

Pros & Cons

Tata Ace Gold Plus XL Pros & Cons

What We Like

5
  • The Ace Gold Plus Xl stands out with its remarkable fuel economy, delivering an impressive 35 km/kg for the CNG variant and a robust 32 km/l for the diesel model, ensuring significant savings on daily operational costs for any business.
  • Designed to boost profitability, the Ace Gold Plus Xl offers a substantial and segment-leading payload capacity, allowing transporters to efficiently carry more goods per trip and maximize revenue potential.
  • With its compact dimensions and agile steering, the Ace Gold Plus Xl is exceptionally easy to navigate through congested city traffic, narrow lanes, and tight parking spots, making last-mile delivery highly efficient.
  • Benefiting from Tata Motors' extensive and trusted service network across India, owners of the Ace Gold Plus Xl can rely on readily available maintenance, genuine spare parts, and prompt assistance, ensuring minimal vehicle downtime.
  • The availability of Diesel, Petrol, and CNG powertrains for the Ace Gold Plus Xl provides immense flexibility, empowering buyers to choose the most economical and accessible fuel type tailored to their specific routes and operational needs.

What We Don't Like

4
  • While perfect for urban use, the Ace Gold Plus Xl's engine, with modest power (akin to 16-23 HP) and torque (around 38-48 Nm), can feel underpowered on long highway stretches or when climbing steep gradients with a full load.
  • The cabin of the Ace Gold Plus Xl is primarily functional, offering very basic driver comfort features and ergonomics, which may contribute to fatigue during extended working hours, particularly for drivers on longer shifts.
  • Focusing on core utility, the Ace Gold Plus Xl typically lacks modern convenience and safety features like air conditioning (not standard across all variants), power steering (only in select variants), or advanced infotainment systems.
  • While adequate for most roads, the relatively smaller tyre size and ground clearance of the Ace Gold Plus Xl might pose challenges on severely broken roads or unpaved rural tracks, potentially affecting stability and driveability.

Details

Tata Ace Gold Plus XL Features & Specifications

8 categories

Performance

11 items

Max Power 16.2 kW
Engine Displacement (cc) 700 cc
Engine 2 Cyl. , 700CC TC
Fuel Type Diesel
Emission Norms BS-VI
Max Torque 55 Nm
Max Speed (km/h) 62
Engine Cylinders 2
Turning Radius (mm) 4625
Carrier Type Goods Carrier
Product Type L5N (High Speed Goods Carrier)

Dimension

8 items

Overall Length (mm) 4075
Overall Width (mm) 1500
Overall Height (mm) 1858
Ground Clearance (mm) 174
Wheelbase (mm) 2250
Loading Length {mm} 2520
Loading Width {mm} 1490
Loading Height {mm} 300

Transmission & Loading Capacity

4 items

Transmission Manual
Payload (Kgs) 1000 Kgs
GVW / GCW (Kgs) 1975 kg
Gear Box 5 Forward + 1 Reverse

Features

11 items

Steering Mechanical
Cruise ControlNo
Navigation SystemNo
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver SeatNo
Seating Capacity D+1
Tubeless TyresYes
Seat BeltsYes
Hill HoldNo

Brakes & Suspension

3 items

Brakes Disc & Drum Brakes
Front Suspension Parabolic Leaf Spring
Rear Suspension Semi - Elliptical leaf spring

Body Option & Cabin Type

3 items

Chassis Type Chassis with Cabin
Body Option Deck Body
Cabin Type Day Cabin

Tyres

3 items

Number of Tyre 4
Rear Tyre 155 R13 LT 8PR
Front Tyre 155 R13 LT 8PR

Others

2 items

ChassisYes
Fog LightsNo

Alternatives

Tata Ace Gold Plus XL Alternatives

Truck Options

Explore More Truck Options

Expert Review

Tata Ace Gold Plus XL Expert Review

Tata Ace Gold Plus XL – Price, Mileage, Specifications and Features

Tata Ace Gold Plus XL is a small commercial vehicle designed for businesses that need to transport larger loads efficiently on urban and semi-urban routes. Its extended 8-foot load body and 1-tonne payload capacity make it suitable for entrepreneurs, shopkeepers, distributors and logistics operators. The vehicle is designed to support last-mile deliveries while helping businesses carry more goods in each trip.

Price in India

Tata Ace Gold Plus XL is a diesel-powered mini truck introduced for commercial transportation. Its listed price may vary by location, dealership and available offers. Buyers should contact an authorised Tata Motors commercial vehicle dealer for the latest ex-showroom price and financing options.

Engine and Performance

Tata Ace Gold Plus XL is powered by a 700 cc, two-cylinder turbocharged diesel engine that produces approximately 22 PS of power and 55 Nm of torque. The engine is paired with a five-speed manual gearbox, providing practical performance for everyday cargo transportation.

The truck uses Lean NOx Trap (LNT) technology, which eliminates the need for Diesel Exhaust Fluid (DEF). This can simplify routine maintenance and reduce the additional operating requirements associated with DEF refilling.

Mileage and Fuel Efficiency

The Ace Gold Plus XL is designed for frequent delivery operations where fuel efficiency is important to business profitability. Its compact diesel engine supports everyday goods transportation, while actual mileage depends on traffic, cargo weight, driving style and vehicle maintenance.

Payload Capacity and Dimensions

Tata Ace Gold Plus XL offers a payload capacity of 1,000 kg and a gross vehicle weight (GVW) of 1,975 kg. Its extended load body measures approximately 2,520 mm in length, 1,490 mm in width and 300 mm in height, providing around 8 feet of loading length.

The vehicle has a 2,250 mm wheelbase and approximately 174 mm of ground clearance, making it suitable for navigating busy delivery routes and different urban road conditions.

Features and Comfort

The mini truck features a practical day cabin with seating for the driver and one passenger. Its specifications include a driver information display, tubeless tyres and a mechanical steering system. The compact design helps drivers manoeuvre through narrow streets, markets and congested commercial areas.

Braking and Suspension

Tata Ace Gold Plus XL features front disc brakes and rear drum brakes. Its front suspension uses parabolic leaf springs, while the rear suspension uses semi-elliptical leaf springs to support regular cargo-carrying operations.

Best Uses

Tata Ace Gold Plus XL is suitable for grocery deliveries, FMCG distribution, courier and parcel services, e-commerce logistics, textile transportation, milk-can delivery, beverage distribution and LPG cylinder transportation. Its extended load body makes it useful for businesses that need to carry longer or bulkier goods.

Conclusion

Tata Ace Gold Plus XL combines a 700 cc turbo-diesel engine, a 1-tonne payload capacity and an extended 8-foot load body. With its compact dimensions and practical design, it is a useful option for small businesses seeking a mini truck for regular last-mile transportation.

FAQ

Frequently Asked Questions About Tata Ace Gold Plus XL

Dimensions

Tata Ace Gold Plus XL Dimensions

What are the key cargo body dimensions of the Ace Gold Plus Xl?

+
The key cargo body dimensions of the Ace Gold Plus Xl are approximately 2200 mm (7.2 ft) in length, 1490 mm in width, and 300 mm in height. These generous dimensions allow for significant load carrying capacity up to 750 kg.

What is the overall length and width dimension of the Ace Gold Plus Xl?

+
The overall length dimension of the Ace Gold Plus Xl is approximately 4075 mm, and its overall width dimension is around 1500 mm. These compact external dimensions make it agile in congested city traffic and narrow lanes.

What is the wheelbase dimension of the Ace Gold Plus Xl?

+
The wheelbase dimension of the Ace Gold Plus Xl is 2250 mm. This optimized wheelbase contributes significantly to the vehicle's stability, maneuverability, and load-carrying balance, crucial for diverse operational requirements.

What is the ground clearance dimension of the Ace Gold Plus Xl?

+
The ground clearance dimension of the Ace Gold Plus Xl is 160 mm. This adequate ground clearance helps the Ace Gold Plus Xl navigate uneven roads, potholes, and speed breakers with ease, minimizing the risk of undercarriage damage.

What is the loading height dimension of the Ace Gold Plus Xl?

+
The loading height dimension of the Ace Gold Plus Xl is designed to be ergonomic, making it easy for operators to load and unload goods efficiently. This practical loading height improves operational turnaround times and reduces physical strain.

Does the compact external dimension of the Ace Gold Plus Xl affect its loading capacity?

+
Despite its compact external dimension, the Ace Gold Plus Xl features an intelligently designed cargo deck to maximize loading capacity for its segment. It offers a substantial payload of 750 kg within its efficient dimensions, ensuring high productivity.

What is the overall height dimension of the Ace Gold Plus Xl?

+
The overall height dimension of the Ace Gold Plus Xl is approximately 1840 mm (unladen). This moderate height ensures the vehicle can pass under most overhead structures and navigate spaces with height restrictions effortlessly.
