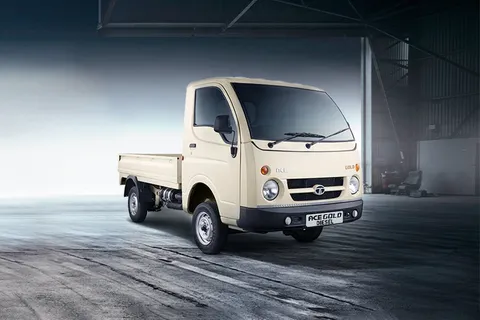

Tata Ace Gold
Ex-Showroom Price
₹4.50L - ₹6.69L
4.3/5About
The Tata Ace Gold is a popular small commercial vehicle, commonly known as the Chota Hathi, and is available in 7 variants. It comes with a 694 cc engine and has a payload capacity of 900 kg, making it suitable for carrying goods for local businesses and daily transportation needs. The Ace Gold has a GVW of 1835 kg and a 2,100 mm wheelbase, while its compact dimensions make it easy to operate in busy city areas and narrow roads.
Specifications
Tata Ace Gold Key Specifications
Number of Tyres4
GVW1835 kg
Payload900 Kgs
Mileage
- 15 kmpl
Fuel Tank Capacity26 Ltr
Fuel TypePetrol
Max Torque55 Nm
Max Speed65 km/h
Power
- 22.21 kW
Gear BoxGBS 65- 5/6.31
Engine694 cc
Chassis TypeChassis with Cabin
All Variants
Tata Ace Gold Variants
| Variant Name | Price | Mileage | Fuel Type | Action |
|---|---|---|---|---|
| 2250/CNG | ₹4.50L - ₹6.69LEx-showroom Price | 21.4 kmpl | CNG | Details |
| 2250/CNG Plus | ₹4.50L - ₹6.69LEx-showroom Price | 21.4 kmpl | CNG | Details |
| 2100/Diesel | ₹4.50L - ₹6.69LEx-showroom Price | 22 kmpl | Diesel | Details |
| 2100/Diesel Plus | ₹4.50L - ₹6.69LEx-showroom Price | 22 kmpl | Diesel | Details |
Series
Explore Tata Series
Applications
Tata Ace Gold Key Use Cases
Use Case 1
E-commerce Delivery
Use Case 2
Dairy Products
Use Case 3
Furniture & Household Goods
Use Case 4
Courier & Parcel Services
Compare
Compare Tata Ace Gold With Similar Trucks
Pros & Cons
Tata Ace Gold Pros & Cons
What We Like
5- The Tata Ace Gold benefits from Tata Motors' expansive and reliable service network across India, ensuring minimal downtime and easy availability of genuine parts, which is crucial for business continuity.
- Offering a comprehensive range including Diesel, Petrol, and CNG options, the Tata Ace Gold allows buyers to choose the most cost-effective and suitable fuel type based on their operational routes and fluctuating fuel prices.
- With its compact dimensions and tight turning radius (typically around 4.3-4.5 meters), the Tata Ace Gold excels in navigating congested city streets, narrow alleys, and challenging rural terrains, making last-mile delivery highly efficient.
- Delivering a commendable payload capacity of up to 750 kg (for Diesel/Petrol variants) and around 640 kg for the CNG variant, the Tata Ace Gold empowers businesses to transport a significant volume of goods per trip, enhancing profitability and operational efficiency.
- The Tata Ace Gold is known for its relatively low maintenance costs and decent fuel efficiency across its variants (e.g., up to 22 km/l for Diesel, and around 28-30 km/kg for CNG), contributing significantly to lower overall running expenses for operators.
What We Don't Like
4- While adequate for city runs, the Tata Ace Gold can feel somewhat underpowered on steep inclines or extended highway stretches when fully loaded, with its modest engine power (e.g., 20-30 HP depending on variant) potentially impacting delivery schedules for longer routes.
- The cabin of the Tata Ace Gold, while functional, offers very basic amenities and limited comfort features like manual steering and rudimentary seating, which might lead to driver fatigue during longer operational hours or extended trips.
- As is common in this segment, the Tata Ace Gold provides only essential safety features, largely lacking modern additions like ABS or airbags, which some competitors are beginning to offer even in entry-level commercial vehicles.
- The upfront purchase cost for the Tata Ace Gold CNG variant can be noticeably higher (typically ₹5.20 - ₹5.70 Lakhs ex-showroom) compared to its Diesel or Petrol counterparts, requiring a longer payback period despite lower running costs.
Details
Tata Ace Gold Features & Specifications
Performance
17 items
Performance
17 items
Max Power 22.21 kW
Engine Displacement (cc) 694 cc
Fuel Tank (Litres) 26 Ltr
Engine 694cc MPFI BS-VI RDE, 4 Stroke Water cooled
Fuel Type Petrol
Emission Norms BS-VI
Max Torque 55 Nm
Mileage City 18-20
Mileage Highway 20-22
Mileage 15 kmpl
Gradeability (%) 35 %
Max Speed (km/h) 65
Engine Cylinders 2
Turning Radius (mm) 4300
Battery Capacity 46 Ah
Product Type L3N (Low Speed Goods Carrier)
Carrier Type Goods Carrier
Dimension
9 items
Dimension
9 items
Overall Length (mm) 3800
Overall Width (mm) 1500
Overall Height (mm) 1845
Ground Clearance (mm) 160
Wheelbase (mm) 2100
Axle Configuration 4x2
Loading Length {mm} 2200
Loading Width {mm} 1490
Loading Height {mm} 300
Transmission & Loading Capacity
7 items
Transmission & Loading Capacity
7 items
Transmission Manual
Payload (Kgs) 900 Kgs
GVW / GCW (Kgs) 1835 kg
Kerb Weight (Kgs) 740
Gear Box GBS 65- 5/6.31
Clutch Single-plate, dry-friction diaphragm type
Power SteeringNo
Features
14 items
Features
14 items
Steering Manual Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat Type Standard
Driver Information DisplayYes
Adjustable Driver SeatYes
Seating Capacity D+1
Tubeless TyresYes
Seat BeltsYes
Hill HoldNo
Brakes & Suspension
7 items
Brakes & Suspension
7 items
Brakes Disc & Drum Brakes
Front Axle Rigid front axle with parabolic leaf springs
Front Suspension Rigid Axle with Parabolic Leaf Spring
Rear Axle Live axle
Rear Suspension Live Axle with Semi-Elliptical leaf spring
ABSNo
Parking BrakesYes
Body Option & Cabin Type
4 items
Body Option & Cabin Type
4 items
Chassis Type Chassis with Cabin
Body Option Low Deck and Flat Bed
Cabin Type Day Cabin
Tiltable CabinNo
Tyres
3 items
Tyres
3 items
Number of Tyre 4
Rear Tyre 145 R12 LT 8PR, Radial
Front Tyre 145 R12 LT 8PR, Radial
Others
3 items
Others
3 items
ChassisYes
Battery(Volts) 12 V
Fog LightsNo
Alternatives
Tata Ace Gold Alternatives
Truck Options
Explore More Truck Options
News
Truck News
Expert Review
Tata Ace Gold Expert Review
Tata Ace Gold: Price, Mileage, Specifications and Features
Tata Ace Gold is a compact mini truck designed for last-mile goods transportation and urban delivery applications. It is available with different powertrain options, including diesel, petrol and CNG, depending on the variant. The Ace Gold range offers practical dimensions, a compact turning radius and payload capacities suited to small commercial transportation.
Engine and Performance
Tata Ace Gold Petrol is powered by a 694 cc, two-cylinder naturally aspirated petrol engine that produces 30 HP of maximum power and 55 Nm of peak torque. It is paired with a 5-speed manual gearbox and has a top speed of up to 65 km/h. The petrol version also offers 37% gradeability, making it suitable for urban and semi-urban cargo operations.
The Tata Ace Gold Diesel uses a 702 cc turbocharged, intercooled, direct-injection common-rail diesel engine. It develops up to 22 HP and 55 Nm of torque in Power Mode, with a 5-speed manual gearbox.
Payload and Loading Capacity
Tata Ace Gold Petrol offers a payload capacity of up to 900 kg, with a maximum GVW of 1,740 kg. Its standard cargo box measures 2,200 mm in length, 1,490 mm in width and 300 mm in height. The vehicle is also available in different load-body configurations depending on the application.
Dimensions and Chassis
Tata Ace Gold measures 3,800 mm in length and 1,500 mm in width. The petrol version has a height of 1,845 mm, a wheelbase of 2,100 mm and 160 mm of ground clearance. Its minimum turning circle radius is approximately 4,300 mm, helping it manoeuvre through narrow roads and congested markets.
Brakes and Suspension
Tata Ace Gold is equipped with disc brakes at the front and drum brakes at the rear. The front suspension uses a rigid axle with parabolic leaf springs, while the rear gets a live axle with semi-elliptical leaf springs. This suspension setup is designed to provide stability and durability during regular goods transportation.
Steering, Cabin and Tyres
Tata Ace Gold comes with mechanical steering and a driver-plus-one seating arrangement. It is equipped with 145 R12 tyres, while the compact cabin and chassis design make it suitable for frequent urban delivery operations.
Fuel Tank and Mileage
Petrol-powered Tata Ace Gold comes with a 26-litre fuel tank. Its engine is designed to balance performance and fuel efficiency for short-distance commercial transportation. The diesel and CNG versions provide additional powertrain choices for customers with different operating requirements.
Key Specifications
Tata Ace Gold Petrol gets a 694 cc engine producing 30 HP and 55 Nm, paired with a 5-speed manual transmission. It offers up to 900 kg payload capacity, 1,740 kg GVW, 37% gradeability and a 65 km/h top speed. The truck has a 2,100 mm wheelbase, 160 mm ground clearance and a 26-litre petrol tank. With its compact dimensions, multiple fuel options and practical cargo body, the Tata Ace Gold is designed for last-mile delivery, FMCG, fruits and vegetables, e-commerce and other small-load transportation applications.
Owner Reviews
Tata Ace Gold Customer Reviews
4.3/5 (6 reviews)
FAQ
Frequently Asked Questions About Tata Ace Gold
Dimensions
Tata Ace Gold Dimensions
What are the dimensions of the Tata Ace Gold?
+−
Dimensions of Tata Ace Gold are – Length: 12.47 feet, Width: 4.92 feet, Height: 6.05 feet.
What is the loading area size of the Tata Ace Gold?
+−
Tata Ace Gold offers a 7.2 ft × 4.9 ft loading deck for diesel and petrol variants, and 8.2 ft × 4.9 ft for CNG variants.
What is the wheelbase of the Tata Ace Gold?
+−
The wheelbase of Tata Ace Gold is approximately 2100 mm, which contributes to its stability and easy turning radius, essential for navigating congested city roads.
What is the ground clearance of the Tata Ace Gold?
+−
The Ace Gold typically features a ground clearance of around 160 mm, allowing it to handle diverse road conditions and minor bumps effectively.
What is the payload capacity of the Tata Ace Gold?
+−
Tata Ace Gold boasts a payload capacity of 750 kg, making it suitable for transporting a wide range of goods efficiently across short to medium distances
