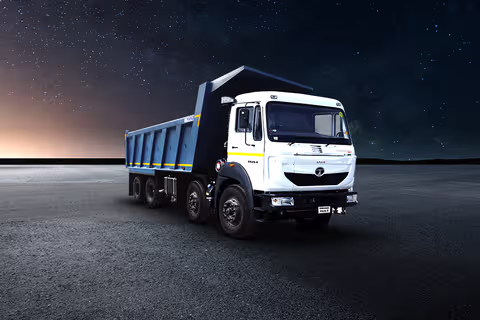

Tata Signa 3523 TK

Tata Signa 3523 TK thumbnail

Ex-Showroom Price

₹49.23L

Quick Specs

GVW

35000 kg

Power

220 hp

Specifications

Tata Signa 3523 TK Key Specifications

Number of Tyres12
Payload26000 Kgs
Power
  • 220 hp
Mileage
  • 2.5-3.5 kmpl
Fuel Tank Capacity300 Ltr
Chassis TypeChassis with Cabin
Fuel TypeDiesel
Max Torque850 Nm
Max Speed80Km/h
Gear BoxG1150 9 speed Gearbox with crawler & one reverse

Details

Tata Signa 3523 TK Features & Specifications

Max Power 220 Hp

Engine Displacement (cc) 5635 cc

Fuel Tank (Litres) 300 Ltr

Engine CUMMINS ISBe 5.6L

Fuel Type Diesel

Emission Norms BS-VI

Max Torque 850 Nm

Mileage 2.5-3.5 kmpl

Max Speed (km/h) 80

Engine Cylinders 6

Turning Radius (mm) 9800

Battery Capacity 120 Ah

Product Type L5N (High Speed Goods Carrier)

Carrier Type Goods Carrier

Overall Length (mm) 8571

Overall Width (mm) 2510

Overall Height (mm) 2961

Ground Clearance (mm) 230

Wheelbase (mm) 5580

Axle Configuration 8x4

Size (Cu. M) 20 m3 Box

Transmission Manual

Payload (Kgs) 26000 Kgs

GVW / GCW (Kgs) 35000 kg

Kerb Weight (Kgs) 9000

Gear Box G1150 9 speed Gearbox with crawler & one reverse

Clutch 380 mm Dia Push type Single Plate Dry FrictionOrganic Lining

Power SteeringYes

Steering Power Steering

A/C Optional

Cruise ControlNo

Navigation SystemNo

TelematicsYes

Tiltable Steering Tilt and telescopic

Arm-restNo

Seat Type Standard

Driver Information DisplayYes

Adjustable Driver Seat 6 way adjustable

Seating Capacity D+1

Tubeless TyresNo

Seat BeltsYes

Hill HoldNo

Brakes New iCGT Brakes

Front Axle Forged I beam reverse elliot type - drop beam

Front Suspension Parabolic Leaf Spring

Rear Axle Single reduction, extra heavy duty, hypoid gears, fully floating axle shafts with differential lock

Rear Suspension Semi elliptical Leaf spring

ABSYes

Parking BrakesYes

Chassis Type Chassis with Cabin

Body Option Box body

Cabin Type Day Cabin

Tiltable Cabin Hydraulically tiltable

Number of Tyre 12

Rear Tyre 295/90 R20

Front Tyre 295/90 R20

ChassisYes

Battery(Volts) 12 V

Fog LightsNo

About Tata Signa 3523 TK Truck

Looking for a true workhorse that can tackle the toughest jobs on Indian terrain? The Tata Signa 3523 Tk is exactly that – a robust and reliable tipper truck designed to dominate construction sites and material handling operations. Built for heavy-duty performance, this truck combines immense power, impressive efficiency, and legendary durability, making it a preferred choice for businesses across the country. When considering the Tata Signa 3523 Tk price in India, you're looking at a competitive and value-driven investment. Typically, the ex-showroom price for this powerful machine starts from around ₹38 Lakhs and can go up to ₹45 Lakhs, depending on the specific variant, body configuration, and regional taxes. It offers excellent value for money, making it a smart and profitable decision for your fleet. Under the hood, the Tata Signa 3523 Tk is powered by a reliable and high-performing Cummins ISBe 5.9L engine. This robust unit delivers a potent 230 HP and massive torque, ensuring superior pulling power and effortless climbing even with a full load on challenging gradients. While heavy-duty trucks prioritize hauling capacity, the Tata Signa 3523 Tk mileage is optimized for efficiency, helping you keep operational costs in check. Expect a practical mileage range of 2.5-3.5 km/l, which is commendable for a truck of this size and capability, especially when considering the sheer volume of material it can move daily. This formidable truck boasts an impressive Gross Vehicle Weight (GVW) of 35,000 kg (35 tonnes), categorizing it as a true heavy-duty champion. This high GVW translates into a substantial payload capacity, making it ideal for transporting aggregates, sand, stone, and other bulk materials with ease. In terms of Tata Signa 3523 Tk dimensions, it typically comes with a robust chassis designed for various tipper body configurations, including a 22 Cu. M. box body or rock body. This ample cargo space and sturdy build ensure efficient and safe material transport, minimizing trips and maximizing productivity. With its sheer power and capacity, the Tata Signa 3523 Tk is primarily designed for demanding applications such as construction, mining, and large-scale infrastructure projects. It excels in transporting sand, gravel, stone, and other heavy aggregates over challenging terrains and long hauls. Its durability and high load-carrying capacity also make it a reliable partner for bulk material movement in industrial setups and quarry operations. Ask any owner, and they'll tell you about the Tata Signa truck's legendary reliability and trusted performance. Buyers consistently praise Tata for its robust build quality, powerful driveline, and exceptional after-sales service network spread across India. With easy availability of spare parts and widespread service centres, downtime is minimized, ensuring your operations run smoothly and profitably. While the Tata Signa 3523 Tk might come with different body options (e.g., box body, rock body) and axle configurations to suit specific needs, its core strength remains consistent. In the highly competitive Indian truck market, its main rivals include similar 35-tonne tippers from brands like Ashok Leyland (e.g., U-3518) and BharatBenz (e.g., 3528C). However, the Signa 3523 Tk often stands out due to its proven performance, fuel efficiency, strong resale value, and the deep trust associated with the Tata Motors brand, making it a consistently popular choice among operators. In conclusion, the Tata Signa 3523 Tk is more than just a truck; it's a strategic asset for any business involved in heavy-duty material transport. With its powerful engine, impressive Tata Signa 3523 Tk mileage for its class, robust build, and competitive Tata Signa 3523 Tk price in India, it offers an unbeatable package of performance, reliability, and profitability. If you're looking for the best truck in India for your construction or mining needs, the Signa 3523 Tk should undoubtedly be at the top of your list. It’s a true partner that delivers consistent performance, unwavering reliability, and superior returns on your investment.

Read More

Applications

Tata Signa 3523 TK Key Use Cases

Construction

Mining

Road development

All Variants

Tata Signa 3523 TK Variants

1 of 1 variant

Variant NameTata Signa 3523.TK CAB/5580Price₹49.23LEx-showroom PriceGet Details

Series

Explore Tata Series

Review Tata Signa 3523 TK

Looking for a heavy-duty tipper truck that truly delivers on power and efficiency? The Tata Signa 3523 Tk is engineered to be a game-changer in India's challenging construction and mining sectors. This robust 12-wheeler tipper is designed to tackle the toughest terrains and transport heavy loads with remarkable ease, making it a favorite for demanding operations.

\n

When considering the Tata Signa 3523 Tk, its Tata Signa 3523 Tk price in India is a key factor for many buyers. Typically, the ex-showroom price for this powerful tipper ranges approximately from INR 48.00 Lakhs to INR 55.00 Lakhs. Please note that prices can vary significantly based on your state, specific variants, and any ongoing dealer offers.

\n

The heart of the Tata Signa 3523 Tk lies in its powerful Cummins ISBe 5.6L BS6 engine. This robust unit delivers a commanding 220 HP of power and a massive 850 Nm of peak torque, ensuring excellent pulling capability even on steep inclines. Regarding Tata Signa 3523 Tk mileage, while it's a heavy-duty truck, it offers competitive fuel efficiency for its class, helping you optimize operational costs. Its strong engine, coupled with a reliable gearbox, ensures a smooth and efficient performance, handling substantial loads with ease across diverse Indian roads.

\n

The Tata Signa 3523 Tk dimensions are designed for heavy hauling. It boasts a Gross Vehicle Weight (GVW) of 35,000 kg, firmly placing it in the 35-ton segment. This impressive Tata Signa 3523 Tk GVW allows for substantial Tata Signa 3523 Tk payload capacity, typically ranging from 20-22 tons depending on the specific body type and local regulations. Available with various tipper body options, such as 18 cu.m or 20 cu.m box bodies, it provides ample cargo space for bulk materials like sand, gravel, and aggregates.

\n

The Tata Signa 3523 Tk is purpose-built for applications demanding serious hauling power. It's an indispensable asset for large-scale construction projects, efficiently transporting building materials like sand, stone, and cement. Furthermore, it excels in mining operations, road construction, and infrastructure development, where its robust build and high capacity truly shine. This truck is perfectly suited for challenging environments and continuous heavy-duty work cycles.

\n

Buyers and operators consistently laud the Tata Signa 3523 Tk for its exceptional reliability and sturdy build quality. User reviews often highlight its powerful performance, minimal downtime, and the peace of mind that comes with Tata Motors' extensive service network. With readily available parts and expert service support across India, owning a Tata Signa 3523 Tk means less worry and more productivity, building trust among commercial vehicle owners.

\n

The Tata Signa 3523 Tk is available with different tipper body configurations to meet varied operational needs, offering flexibility to buyers. In the fiercely competitive Indian commercial vehicle market, it faces strong competition from models like the Ashok Leyland 3520 Tipper and BharatBenz 3528C. However, the Tata Signa 3523 Tk stands out with its proven Cummins engine, robust chassis, and Tata's reputation for durability and widespread service.

\n

For businesses seeking a high-performance, durable, and fuel-efficient tipper truck, the Tata Signa 3523 Tk emerges as an excellent choice. Its formidable power, impressive load capacity, and the assurance of Tata Motors' extensive support network make it a truly value-for-money proposition. If you're looking for a reliable partner to boost your productivity in demanding sectors, this truck is certainly a strong contender for the title of best truck in India for heavy-duty tipper applications.

Compare

Tata Signa 3523 TK Alternatives

Compare

Tata Signa 3523 TK vs Similar Trucks

This Truck
Tata Signa 3523 TK

Tata Signa 3523 TK

₹49.23 Lakh

BharatBenz 4228RT

BharatBenz 4228RT

₹49.50 Lakh

Eicher Pro 8028XC

Eicher Pro 8028XC

₹42.00 Lakh - ₹47.60 Lakh

Mahindra Blazo X 35 M-Dura Tipper

Mahindra Blazo X 35 M-Dura Tipper

₹49.00 Lakh

Tata Prima 2825.K/.TK

Tata Prima 2825.K/.TK

₹49.98 Lakh - ₹50.85 Lakh

Tata Signa 4225 TK

Tata Signa 4225 TK

₹50.42 Lakh

Price₹49.23 Lakh₹49.50 Lakh₹42.00 Lakh - ₹47.60 Lakh₹49.00 Lakh₹49.98 Lakh - ₹50.85 Lakh₹50.42 Lakh
Body TypeTipperTipperTipperTipperTipperTipper
Engine5635 cc7200 cc7698 cc7200 cc6692 cc6692 cc
Power220 hp210 kW221 kW206 kW250 hp250 hp
Max Torque850 Nm Nm1100 Nm Nm1200 Nm Nm1050 Nm Nm950 Nm Nm950 Nm Nm
Mileage2.5-3.5 kmpl2.25-3.25 kmpl2.75-3.75 kmpl3.5-4.5 kmpl2.75-3.75 kmpl2.25-3.25 kmpl
Gross Vehicle Weight35000 kg42000 kg28000 kg35000 kg28000 kg42000 kg
Payload26000 Kgs31250 Kgs17000 Kgs35000 Kgs18000 Kgs32000 Kgs
No. of Tyres12161081014
Fuel TypeDieselDieselDieselDieselDieselDiesel
Gear BoxG1150 9 speed Gearbox with crawler & one reverseG131, 9F+1R, Mechanical, Synchromesh GearsET140S9 (9 Forward + 1 ReverEaton 9 SpeedG1150 9 speed Gearbox with crawler & one reverseG1150 9 speed Gearbox with crawler & one reverse
Chassis TypeChassis with CabinChassis with CabinChassis with CabinChassis with CabinChassis with CabinChassis with Cabin
View Full Comparison & Add More Trucks →

Tata Signa 3523 TK EMI Calculator

Select Variant
Tata Signa 3523 TK (₹49,23,000)
Credit Score EstimatorAuto-adjusts interest rate
Interest16%of total cost
Down PaymentLoanInterest

Monthly EMI

₹73,220

Down Payment14,76,900
Loan Principal34,46,100
Total Interest9,47,100
Total Cost58,70,100
Share Your EMI
₹1,00,000₹49,23,000
₹0₹48,23,000
%
7%25%
Yr
1 Year7 Years
💡 Down Payment Insight
Increase down payment by ₹50,000 EMI drops by 1,062 and you save 63,720 in total interest.
Recommended: 5 Years
Balances affordable EMI (₹73,220) with lowest total interest.

Lender Comparison— ₹34,46,100 · 5 yr · 10% base

Bank / NBFCRateProc. FeeEMI
BESTMahindra Finance
8.5%₹2,99970,703
SBI
8.75%₹071,118
ICICI Bank
9.1%₹3,99971,703
HDFC Bank
9.25%₹3,50071,955
Axis Bank
9.5%₹3,50072,375

* Rates are indicative. Actual rate depends on your CIBIL score and lender policy.

  • Processing fee and other loan charges are not included in this calculation.
  • The calculated EMI assumes 10% interest rate. Actual rate may vary based on your credit profile and lender.
  • Loan approval is at the sole discretion of the finance partner.

Explore More Truck Option

Review

Tata Signa 3523 TK Pros & Cons

What We Like

  • Robust and reliable build quality suitable for heavy duty operations.
  • Extensive service and spare parts network across India ensuring minimal downtime.
  • Competitive fuel efficiency for its class contributing to lower operating costs.
  • High payload capacity ideal for transporting heavy goods or materials.
  • Improved driver comfort with the modern Signa cabin design.
  • Good resale value in the Indian used truck market.
  • Advanced telematics and features for fleet management and performance monitoring.
  • Overall low total cost of ownership due to reliability and service.

What We Don't Like

  • Initial purchase price can be higher compared to some rivals.
  • Large size may present challenges in maneuvering through congested areas or narrow roads.
  • Some drivers might require time to adapt to the advanced features and controls.
  • Cabin noise and vibration levels are still noticeable compared to premium vehicles.
  • Requires skilled and experienced drivers for optimal and safe operation.
  • While robust, heavy usage on extremely poor roads can still lead to maintenance needs.
  • Turning radius can be wide impacting maneuverability in tight spots.

Frequently Asked Question Tata Signa 3523 TK

Tata Signa 3523 TK Dimensions

What are the key dimensions of the Tata Signa 3523 Tk?

+
The Tata Signa 3523 Tk is a robust truck, typically featuring a wheelbase around 3880 mm and an overall length of approximately 7425 mm. These dimensions contribute to its stability and payload capacity as a heavy-duty truck.

What is the ground clearance of the Tata Signa 3523 Tk?

+
The Tata Signa 3523 Tk offers a generous ground clearance, usually around 250-260 mm, which is vital for navigating rough construction and mining sites. This helps prevent underbody damage on uneven terrains.

What is the overall width and height of this truck?

+
The approximate overall width of the Tata Signa 3523 Tk is around 2500 mm, and its overall height can be close to 3000 mm (without the tipper body raised). These dimensions are standard for a heavy-duty tipper truck in India.

How does the wheelbase of the Tata Signa 3523 Tk affect its maneuverability?

+
With a wheelbase of about 3880 mm, the Tata Signa 3523 Tk offers a good balance between stability for heavy loads and reasonable maneuverability. While not a small commercial vehicle, its design helps navigate construction sites effectively.

What are the tipper body dimensions available for the Tata Signa 3523 Tk?

+
The Tata Signa 3523 Tk typically comes with a 18 cubic meter load body, optimized for efficient bulk material hauling. The exact dimensions of the tipper body can vary slightly based on specific configuration but are designed for maximum payload.

Is the Tata Signa 3523 Tk suitable for narrow roads given its dimensions?

+
As a heavy-duty truck, the Tata Signa 3523 Tk is built for power and payload, not for agility on extremely narrow roads. While it can navigate standard industrial and rural roads, its dimensions mean it's best suited for wider access routes to project sites.

What is the turning circle radius for this truck?

+
The turning circle radius for the Tata Signa 3523 Tk is typically around 15-16 meters. This figure, though standard for heavy-duty trucks, indicates that it requires ample space for turns, which is important to consider for site planning and operations.

Tata Signa 3523 TK Use Case

What are the primary use cases for the Tata Signa 3523 Tk?

+
The Tata Signa 3523 Tk is primarily designed as a heavy-duty tipper truck, ideal for construction, mining, and infrastructure projects. It excels in transporting bulk materials like sand, gravel, stone, and excavated earth over challenging terrains.

Can this truck handle tough off-road conditions found in mining sites?

+
Yes, the Tata Signa 3523 Tk is specifically engineered for robust performance in demanding off-road environments typical of mining and quarrying sites. Its powerful engine and durable chassis make it a reliable choice for such challenging use cases.

Is the Tata Signa 3523 Tk suitable for highway material transport?

+
While primarily a tipper for construction, its robust build and powerful engine also make it capable of material transport over highways, especially for long-haul projects requiring efficient material movement. It's a versatile heavy-duty truck for various hauling needs.

What kind of materials can be transported with this tipper truck?

+
This tipper truck is perfect for transporting a wide range of bulk materials, including construction aggregates (sand, gravel, crushed stone), coal, iron ore, and other excavated earth materials. It's a workhorse for any site needing robust material handling.

Is the Tata Signa 3523 Tk considered one of the best trucks for construction projects in India?

+
Many operators consider the Tata Signa 3523 Tk among the best trucks for construction in India due to its reliability, powerful engine, and high payload capacity. It's a popular choice for large-scale infrastructure development and material transport.

Can this truck be used for long-distance transport of bulk goods?

+
While its primary design is for shorter haul, heavy-duty tipper applications, the Tata Signa 3523 Tk can certainly be utilized for longer distances when transporting bulk goods. Its comfortable cabin and powerful engine ensure efficient performance across various use cases.

Does it come with different body options for specific use cases?

+
The Tata Signa 3523 Tk is primarily offered as a chassis with a tipper body, though specific configurations can vary. Its core design focuses on heavy-duty bulk material transport, making the tipper body the most common and effective option for its intended use cases.

Tata Signa 3523 TK Mileage

What is the average mileage of the Tata Signa 3523 Tk?

+
The Tata Signa 3523 Tk, being a heavy-duty tipper, typically offers a mileage range of 2.5 to 3.5 kmpl, depending on driving conditions and load. This is considered competitive for its segment, making it a viable option for businesses focused on fuel efficiency.

How can I improve the fuel efficiency of my Tata Signa 3523 Tk?

+
To boost your Tata Signa 3523 Tk mileage, ensure proper tire pressure, avoid aggressive driving, and maintain regular service schedules. Optimal gear selection and avoiding overloading also significantly contribute to better fuel efficiency.

Does payload affect the mileage of this heavy-duty truck?

+
Absolutely, the payload directly impacts the mileage of any heavy-duty truck. Carrying maximum permissible load will naturally result in lower fuel efficiency compared to driving with a lighter or unladen truck, a crucial factor for operators.

Is the Tata Signa 3523 Tk considered fuel-efficient for its class?

+
Yes, for a 35-ton GVW tipper truck designed for challenging tasks, the Tata Signa 3523 Tk is generally considered fuel-efficient in its class. Tata Motors has incorporated advanced engine technology to optimize its mileage without compromising on power.

What driving conditions impact the Tata Signa 3523 Tk's mileage the most?

+
Steep inclines, rough terrains, and stop-and-go traffic can significantly impact the mileage of your Tata Signa 3523 Tk. Driving on highways with consistent speeds generally yields better fuel efficiency compared to demanding off-road or urban environments.

Are there any specific engine features that help with better mileage on this truck?

+
The Tata Signa 3523 Tk is equipped with a powerful Cummins ISBe 5.9L engine, featuring advanced fuel injection systems and an optimized power-to-weight ratio. These technologies are designed to deliver a good balance of power and respectable mileage for a heavy-duty truck.

Does regular maintenance affect the mileage?

+
Absolutely, regular and timely maintenance is crucial for optimal mileage. Keeping the engine tuned, filters clean, and tires correctly aligned ensures your Tata Signa 3523 Tk operates at peak fuel efficiency, saving you money in the long run.

Tata Signa 3523 TK Reviews

What do reviews say about the performance of the Tata Signa 3523 Tk?

+
Reviews consistently praise the Tata Signa 3523 Tk for its robust performance, especially its powerful engine and ability to handle heavy loads on challenging terrains. Operators highlight its reliability and strong pulling power, making it a favorite in the heavy-duty truck segment.

Is the Tata Signa 3523 Tk considered a reliable heavy-duty truck?

+
Yes, based on numerous customer reviews, the Tata Signa 3523 Tk is widely regarded as a highly reliable heavy-duty truck. Its sturdy build quality and proven Tata Motors engineering contribute to its dependability even in harsh working conditions.

How is the driver comfort evaluated in Tata Signa 3523 Tk reviews?

+
Driver comfort is often positively mentioned in reviews, with features like an ergonomic cabin, adjustable seating, and good visibility contributing to a less fatiguing experience. This is crucial for long hours spent operating commercial vehicles.

What are the common positives highlighted in owner reviews of this truck?

+
Owners frequently highlight its powerful engine, impressive payload capacity, robust build, and cost-effectiveness in reviews. Many consider it among the best trucks for its segment due to its strong return on investment and durability.

Are there any consistent criticisms found in reviews of the Tata Signa 3523 Tk?

+
While largely positive, some reviews occasionally mention that fuel consumption, while competitive, can be a point of focus for operators on very long hauls. However, for a heavy-duty truck of its class, its overall performance generally outweighs this.

How is the after-sales service for the Tata Signa 3523 Tk, according to reviews?

+
Tata Motors has an extensive service network across India, and reviews generally reflect good support for their commercial vehicles. Availability of parts and service accessibility are typically seen as strong points, contributing to less downtime for the Tata Signa 3523 Tk.

Is the resale value of the Tata Signa 3523 Tk good based on market reviews?

+
Tata trucks generally hold good resale value in the Indian market, and the Signa 3523 Tk is no exception. Its reputation for durability and reliability, as often cited in reviews, ensures it remains a desirable asset even in the used truck market.

Tata Signa 3523 TK Price

What is the estimated truck price in India for the Tata Signa 3523 Tk?

+
The ex-showroom truck price in India for the Tata Signa 3523 Tk typically ranges from approximately ₹35 Lakhs to ₹45 Lakhs. This price can vary slightly depending on the city, specific configuration, and any ongoing offers.

Does the Tata Signa 3523 Tk price include road tax and insurance?

+
No, the mentioned ex-showroom Tata Signa 3523 Tk price usually does not include road tax, registration fees, insurance, or other RTO charges. These additional costs will make up the final "on-road price" of the truck in India.

Are there financing options available for purchasing the Tata Signa 3523 Tk?

+
Yes, extensive financing options are readily available from various banks and NBFCs across India for the Tata Signa 3523 Tk. You can explore competitive interest rates and flexible EMI plans to make owning this heavy-duty truck more accessible.

How does the Tata Signa 3523 Tk price compare to other heavy-duty trucks in its segment?

+
The Tata Signa 3523 Tk price is considered competitive within the heavy-duty truck segment, especially given its robust features, powerful engine, and reliable performance. It offers a strong value proposition compared to other best trucks in its class.

What factors can influence the final on-road price of the Tata Signa 3523 Tk?

+
The final on-road price of your Tata Signa 3523 Tk is influenced by several factors, including state government taxes, RTO registration fees, insurance premiums, and any additional accessories or customization you opt for. Location also plays a role in the truck price in India.

Is it possible to get a lower price through dealer negotiations or special offers?

+
Yes, it is often possible to negotiate the final price with authorized dealers or inquire about any ongoing special offers or discounts from Tata Motors. It's always a good idea to check for promotions before finalizing your purchase of this heavy-duty truck.

Does the price difference between cities impact the overall purchase decision for this commercial vehicle?

+
Yes, the slight variations in truck price in India between different cities, mainly due to varying local taxes, can impact the overall purchase decision. Buyers often compare quotes from nearby regions to find the most cost-effective option for their new commercial vehicle.
creative

Tata Signa 3523 TK Brochure

Download for detailed specs, features & prices.

Tata Signa 3523 TK EMI

Your estimated monthly EMI
