32 Feet Truck Dimensions in India: Payload, Cargo Type, 2026 Top Models

India's most-booked long-haul truck container size hides a trap: two trucks with identical 32-foot bodies but completely different legal payloads, toll costs, and operating economics.

Most shippers book a "32 footer" without specifying SXL or MXL. And then get stung by a challan at a weighbridge, or pay for 14 tonnes of MXL capacity when their cargo is only 6 tonnes. Understanding the difference before you book is one of the wisest things you can do before buying a 32 feet truck in India.

Exact Dimensions of a 32 Feet Truck in India

The standard 32 feet container truck in India measures 32 × 8 × 8 feet (9.75 × 2.44 × 2.44 metres) externally for both the SXL and MXL variants. The body length stays the same regardless of axle configuration; what changes underneath is the number of wheels.

Standard closed container (SXL and MXL):

• External: 32 ft L × 8 ft W × 8 ft H (9.75 m × 2.44 m × 2.44 m)

• Internal Cargo Volume: approximately 2,048 cubic feet (CFT)

• Real-world Equivalent: fits the contents of a fully furnished 4 BHK apartment or roughly 800 large cartons of consumer goods

High Cube (HQ) Variant:

• Height increases to 10 feet (3.05 m)

• Internal cargo volume: approximately 2,560 CFT. Useful for lightweight, voluminous goods like textiles, packaging material, and foam products

• Not universally available; confirm HQ availability when booking

Open Body (flatbed) at 32 Ft

• Same length but no roof or fixed side walls

• Used for steel, construction materials, machinery, and any cargo that needs crane or side loading

• Payload can be higher on open body since no container shell weight is added

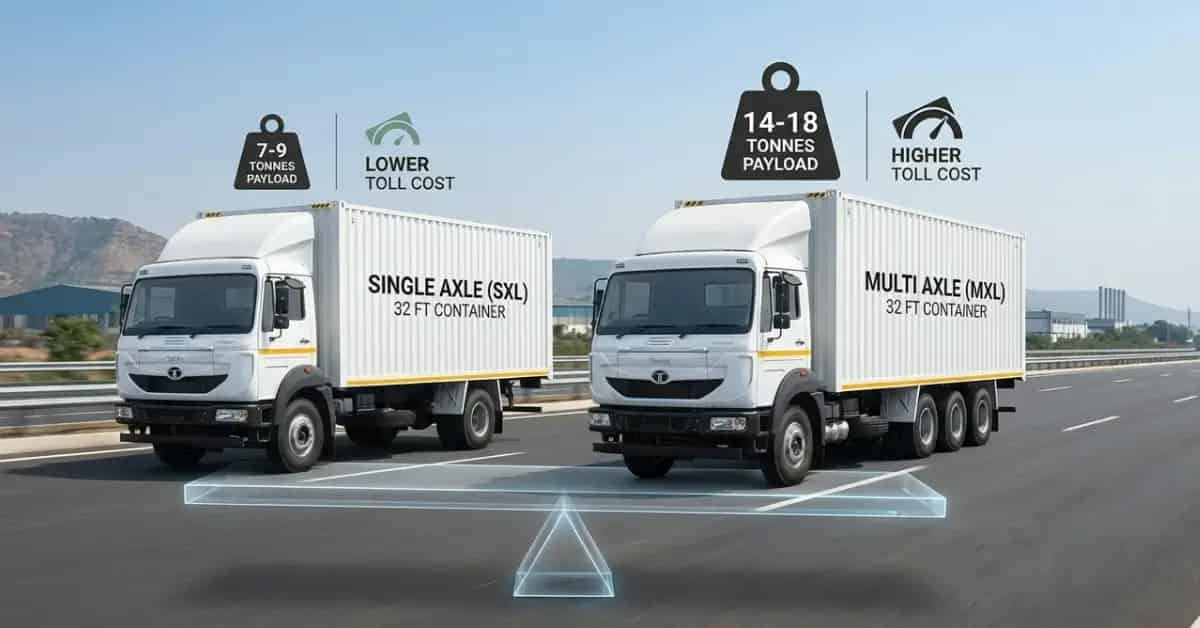

But here's what most people don't know: same external dimensions don't mean same legal payload. A 32 ft SXL and a 32 ft MXL look nearly identical from the outside. But the critical difference is under the chassis.

For a full comparison of all truck sizes, see our truck dimensions in feet in India guide.

32 Feet Truck Payload Capacity

This is where most first-time bookers get confused. Or overloaded.

SXL: Single Axle (6-Wheeler)

The 32 ft SXL runs on two axles and six wheels. As per the MoRTH 2018 revised axle load norms, a two-axle truck has a permissible GVW (Gross Vehicle Weight) of 18,500 kg.

• Payload: 7 to 9 tonnes (depending on the unladen weight of the specific model)

• GVW: up to 18,500 kg

• Better fuel efficiency; lower toll charges; easier to place in urban loading bays

• Best for: high-value, low-weight goods — electronics, FMCG, pharma, packaged food

MXL: Multi Axle (10-Wheeler)

The 32 ft MXL runs on three to four axles and 10 to 12 wheels. The additional axles distribute weight across more contact points, which is why it can legally carry far more.

• Payload: 14 to 18 tonnes (three-axle GVW permissible: 28,500 kg)

• GVW: up to 28,500 kg

• Higher toll charges; slightly lower fuel efficiency; limited entry into some city zones

• Best for: heavy industrial goods, auto parts, steel coils, cement bags, bulk FMCG

The number one overloading mistake on a 32 ft SXL: shippers assume it carries 14–15 tonnes because the body looks as large as an MXL. Overloading a 6-wheeler past 9 tonnes risks a weighbridge penalty starting at ₹20,000 for the first tonne over and the fine increases by ₹2,000 per additional tonne after that.

India’s Best 32 Feet Trucks in 2026

A note on total cost of ownership: The MXL models carry a higher purchase price, but on routes above 400 km with 12+ tonne loads, the per-tonne-per-kilometre cost of an MXL is consistently lower than running two SXL trips. Fleet operators running Delhi–Mumbai or Delhi–Chennai corridors typically prefer MXL for this reason.

32 Ft Truck Body Options

Open Body vs Closed Container: Which Do You Need? Both body types are available at 32 feet, and the choice depends entirely on your cargo.

Closed Container (box truck)

The dominant format for 32 ft trucks in India. It gives your cargo complete protection from rain, dust, humidity, and pilferage. Ideal for anything that can be damaged by weather or needs secure transit: electronics, FMCG, garments, pharmaceuticals, and household goods.

Open Body (flatbed/platform)

No roof, no fixed sides. The right choice when your cargo is too tall, too wide, or needs to be loaded by crane or forklift from the side. Steel rods, marble slabs, heavy machinery, construction equipment, and agricultural produce (with tarpaulin cover) move on open bodies. Open body trucks at 32 ft can also occasionally carry a higher physical payload because the body shell itself is lighter.

Quick guide: If your goods would be ruined by rain or could be pilfered, book a container. If your cargo has irregular dimensions or needs crane loading, go open body.

Ideal Use Cases of 32 Feet Trucks in India

FMCG and Packaged Goods

Primary-distribution runs from regional warehouses to wholesale markets, 300–800 km. The SXL handles ambient packaged goods; the MXL handles bulk pallet loads.

E-commerce and Parcel Logistics

National aggregators use 32 ft SXL containers for hub-to-hub inter-city line-haul movement. It maximises volume for lightweight, high-value shipments like electronics and apparel.

Pharmaceuticals

Temperature-sensitive and high-value medicines move in 32 ft SXL containers with reefer (refrigerated) or insulated body options. The sealed environment is non-negotiable for regulatory compliance.

Automotive Parts

Auto manufacturers and Tier-1 suppliers running cross-country supply chains to assembly plants use 32 ft MXL for heavy component kits like engines, gearboxes, body panels. The higher payload reduces trips.

Garments and Textiles

India's export-focused garment belts (Ludhiana, Tirupur, Surat) use 32 ft containers to move bulk fabric rolls and finished goods to ports and distribution centres. The HQ (high-cube) variant is especially popular here for volumetric efficiency.

Industrial Goods and Manufacturing

Raw materials such as steel coils, copper wire, and packaged chemicals move on 32 ft MXL on inter-state industrial corridors.

3 Questions to Consider : Before YOU Buy a 32 Ft Truck

Run these three questions before you book:

1. How much does your cargo weigh?

• Up to 9 tonnes → 32 ft SXL is right for you

• 10–18 tonnes → you need a 32 ft MXL

• Above 18 tonnes → you're looking at a 40 ft trailer or multi-axle specialist

2. Is your cargo weather-sensitive or high-value?

• Yes → closed container (SXL or MXL depending on weight)

• No, and dimensions are irregular → open body

3. What is the run distance?

• Under 200 km with moderate cargo → a 28 feet truck could be more cost-effective

• 300 km and above → the 32 ft is India's optimal long-haul size

If your cargo is heavier than 18 tonnes or is oversized, explore more truck options on TruckOnWheels to choose the ONE that meets your needs.

Legal Limits and Permits YOU Need to Know

The Central Motor Vehicles Rules (CMVR) and MoRTH govern maximum permissible dimensions and weights on Indian roads.

• Maximum permissible rigid truck length: 12 metres (39.4 ft). The 32 ft body at 9.75 m is well within this limit

• Maximum Width: 2.5 metres. The standard 8 ft (2.44 m) body is compliant

• Maximum Height: 4.0 metres for closed-body trucks. The standard 8 ft (2.44 m) container and even the HQ 10 ft (3.05 m) variant fall within this

• GVW Limits (MoRTH 2018 revision): 18,500 kg for two-axle trucks (SXL); 28,500 kg for three-axle trucks (MXL)

No special ODC (Over-Dimensional Cargo) permit is needed for a standard 32 ft container running within legal dimensions. ODC permits become necessary only if the cargo itself protrudes beyond the body dimensions.

Quick Checklist Before You Book a 32 Ft Truck

• Confirm whether you need SXL (up to 9T) or MXL (up to 18T): Don't leave it to guesswork at the weighbridge

• Specify body type: closed container, open body, or HQ (if you need the extra cubic footage for light, voluminous cargo)

• Check if your loading dock can accommodate a 32-foot vehicle: Turning radius and dock height clearance matter in older industrial estates

• Verify the driver holds an HMV (Heavy Motor Vehicle) licence valid for the specific axle configuration

• For MXL trips, confirm toll charges on the route upfront: Multi-axle trucks attract higher toll rates than 6-wheelers on the same stretch

• Get the unladen weight (tare weight) from the transporter to calculate your exact available payload before loading

Ready to book or compare 32 feet trucks? Browse verified listings on TruckOnWheels and use our EMI calculator to plan your purchase.
